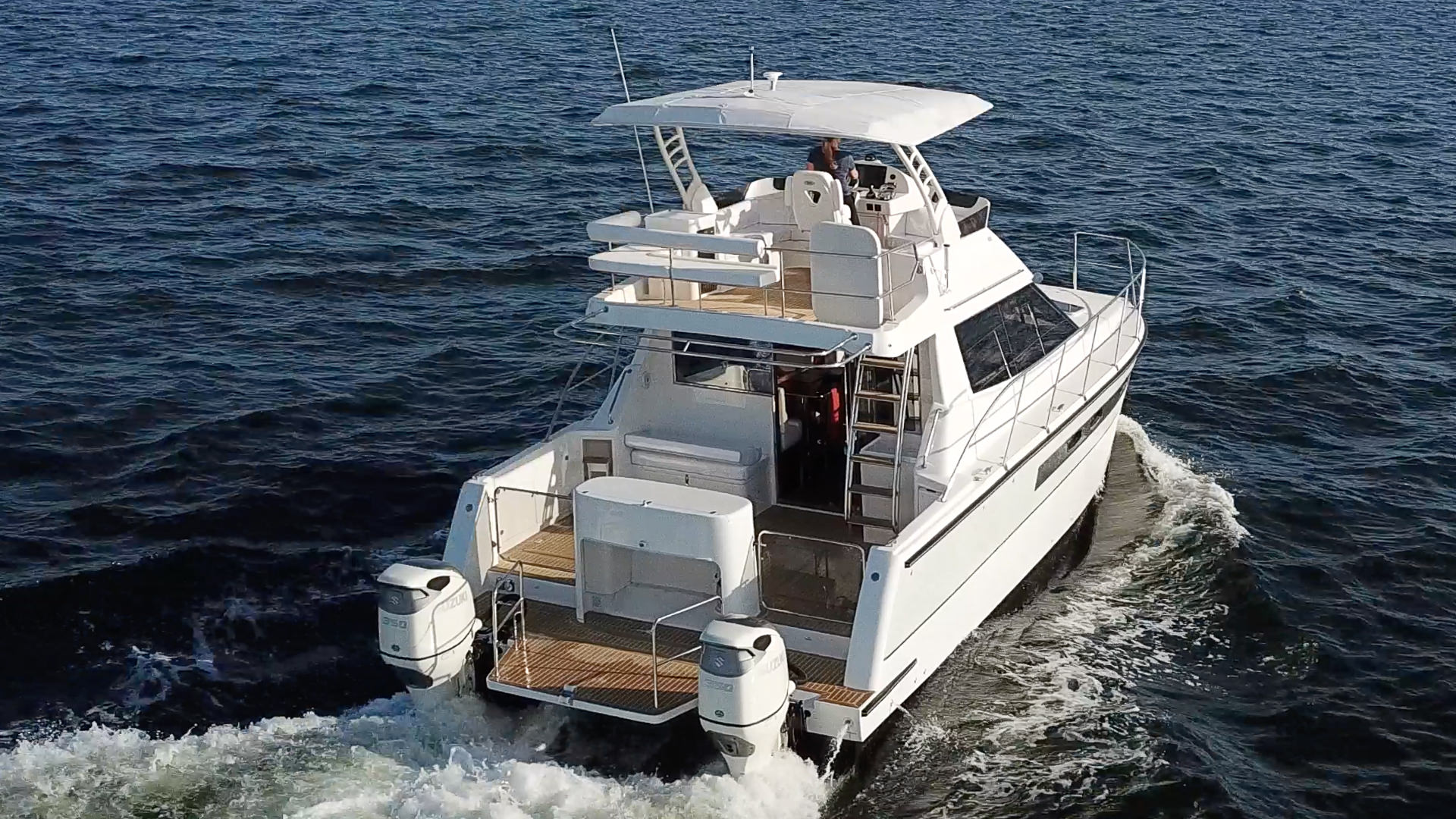

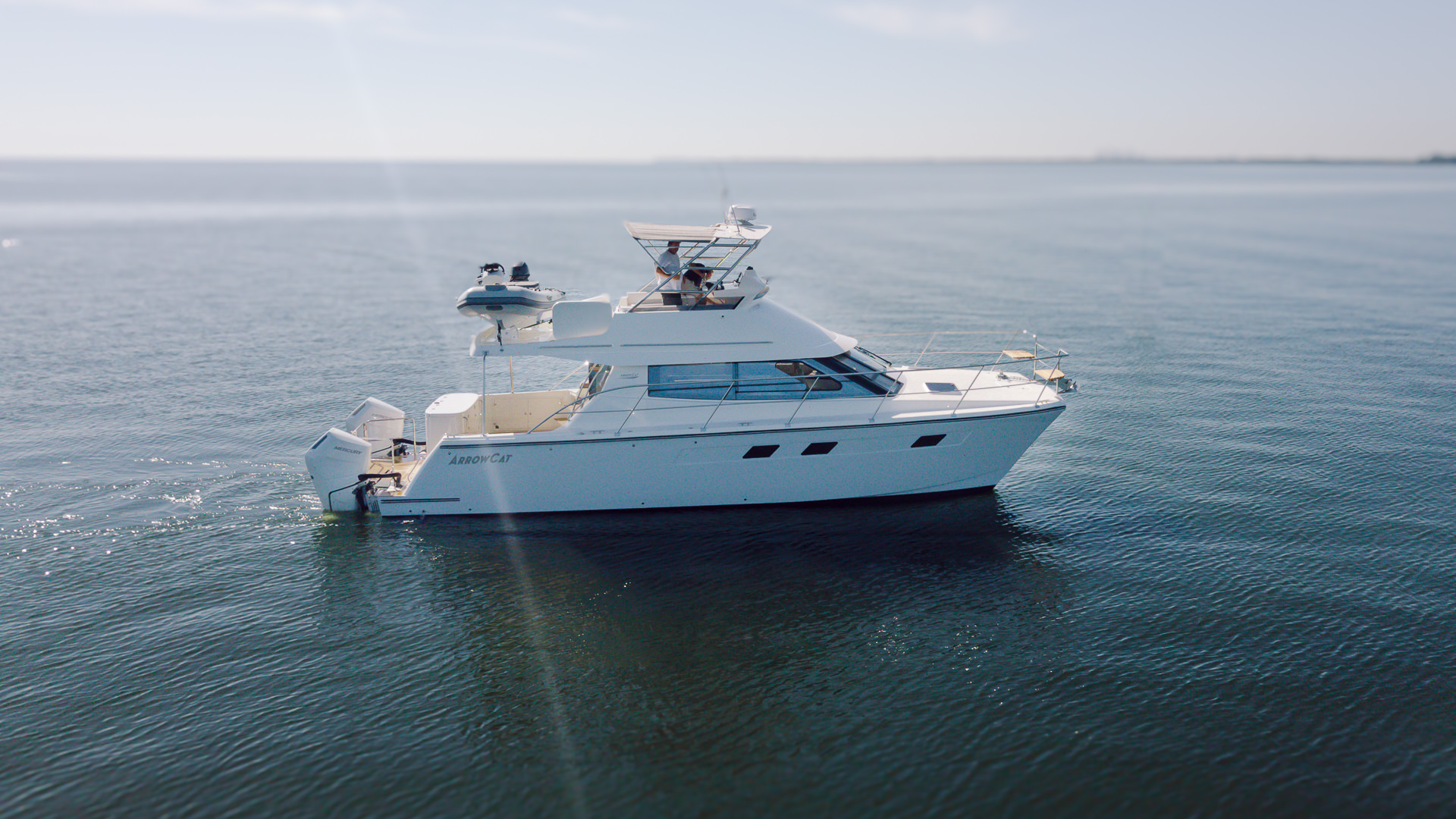

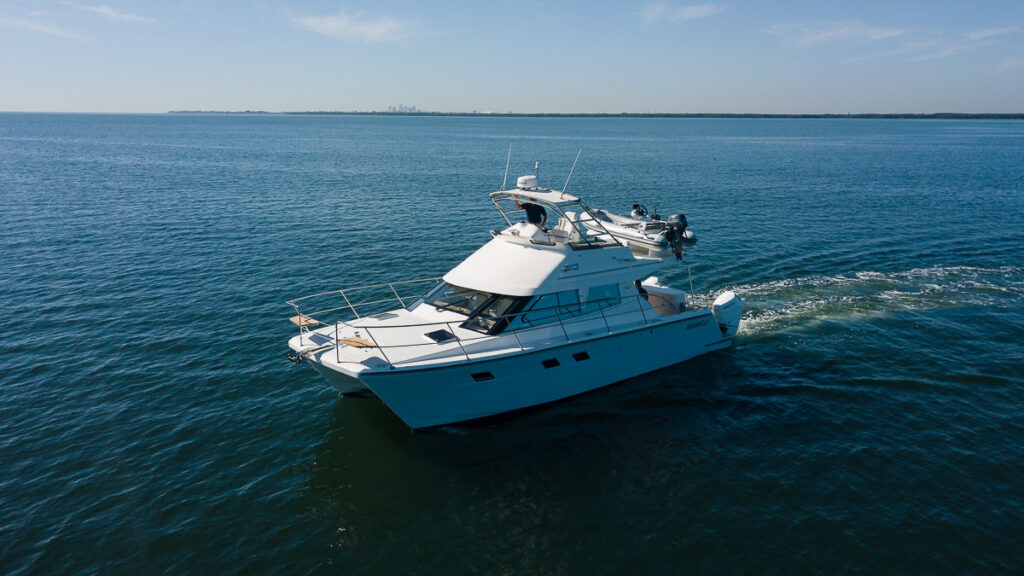

Experience Ultimate Comfort & Performance On The ArrowCat 420 Flybridge
There is nothing like the sensation of operating your yacht from the flybridge. The view ahead is better than any onboard, beautiful weather completely surrounding you as you sit atop the world en route to your next perfect getaway. If you’re looking for a boat that delivers both comfort and performance, ArrowCat’s power catamarans are the perfect choice. With the lower levels completely air-conditioned and offering a galley capable of gourmet meals, a salon that converts to a lounge accompanied by 2 staterooms and 2 heads, depending on your choice of layouts, ArrowCat is the obvious quality choice from an experienced boater’s perspective.
Specifications
Express Cruiser Yacht
Catamaran Hull
Planing Hull Design
Twin Outboard Motors
LOA Length over all – 41′ 9″ / 12.78 meters
Beam – 14′ 9″ / 4.5 meters
Draft – 20″ / .5 meters
Fuel – 400 gal / 1514.2 liters
Water – 100 gal / 378.5 liters
Waste: 40 gal / 151.4 liters
Displacement Dry – 19,000 lbs
Bridge Clearance
(Top down) – 14’5″ / 4.4 meters
(Top up) – 15’6″ / 4.72 meters
Boat & Motor Packages
- Mercury w/SS Props and Digital Controls 2×300 HP
- Mercury w/SS Props and Digital Controls 2×350 HP
- Mercury w/SS Props and Digital Controls 2×400 HP
- OXE DIESEL w/SS Props and Digital Controls 2×300 HP
- Yamaha w/SS Props and Digital Controls 2×425 HP
- Suzuki w/SS Props and Digital Controls 2×350 HP
ARROWCAT 420 FLYBRIDGE
- Table and cabinet fronts available in cherry or maple
- Vinyl floors companionway
- Choice of color with graphic and logo
- Raised port settee with plush ultra leather seating with storage compartments below
- Settee available in grey or white
SALON
- Dinning table (fold into coffee table)
- Flip-up aft bulkhead window port side with stainless steel bifold door to starboard
- Floor storage lockers in salon floor foot level LED at stairwells and passage ways and recessed dimmable LED lights
- Forward quarter widows open
- Settee in rich durable ultra-leather
GALLEY
- Stainless steel fridge with freezer
- Three burner LPG stove
- Acrylic counter top with integral stainless steel sink faucet with pullout sprayer and
flush mount dish soap dispenser with fitted cutting board and fiddle

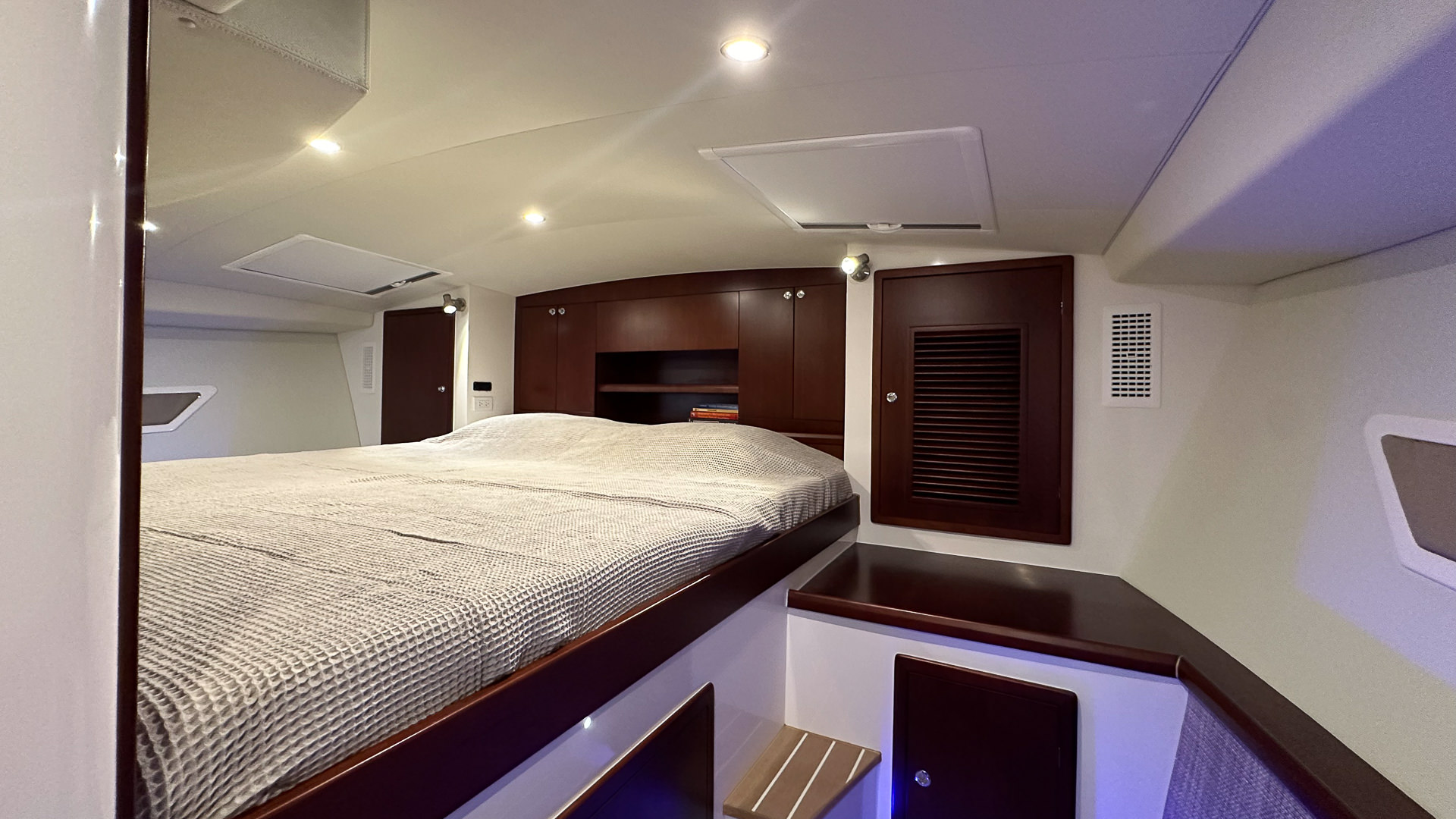

BERTH
- Locker and under bed storage, reading lights with bedside light switches
- Deck hatch with blinds and insect screen (forward berth only) and port light with shade
BATHROOM
- Fully equipped head: electric toilet, hot/cold shower, shower sump pump, sink, mirrors, shelves, vanity
- Shower with glass door (S/S hinges and catch) height adjustable hot/cold hand sprayer
- Toilet (12 V) Purasan with water flush (no odor from saltwater)
ANCHORING & MOORING
- Deck cleats (8) 2-bow, 2-stern, 4 midship, deck cleat at winch
- Deck hatches at bow for ground tackle access (2)
- Lewmar anchor windlass with capstan for 3/8 G4 (10mm) chain, foot operated
winch controls at bow up and down and rocker switch at the helm - Stainless steel anchor roller
ELECTRICAL
- 12 V accessory outlet and dual USB outlet mounted at dash
- 110 V AC power outlets in each of the following, 2x salon, helm, state room, head, galley and
engine room - NEXTGEN 5KW 110 V generator
- Battery management system; 3 independent battery banks, engine and house battery emergency cross-over with automatic charging relays to allow engines to charge house battery
- Combi inverter 2×3000 W and AC battery charger 160 W
- Digital vessel monitor AC/DC voltage, battery state of charge
- Water tanks status
- Galvanic isolator : 50A
- Shore power connection, 2 x30 A with residual current detector
- Shore power 110 V 60-Hz outlets in salon, galley, bathroom(s), berths, engine rooms with resettable breakers with shore power and ships power interlock
ENGINE SYSTEM
- Fuel tanks 2X200 (757) 1500 L USCB complaint fuel tanks (twin tanks with independent fuel filters)

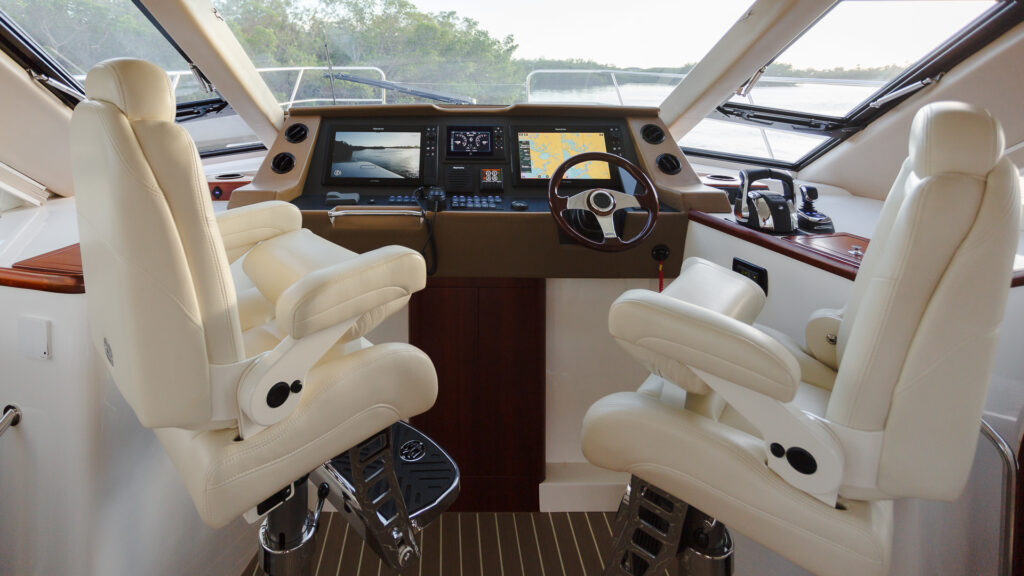

HELM & ELECTRONICS
- Heavy duty 3 speed intermittent windshield wiper and fresh water wash system and self park
SAFETY
- Exterior lighting: cockpit flood light (1), cockpit courtesy lights (2), USCG approved NAV lighting; side (2) all around white steaming light and anchor light (1)
- Exterior rails: bow, stern, cabin top (6)
- High capacity bilge pump in port and starboard bilges and engine rooms
WATER SYSTEM
- Fresh water tank: stainless steel 2×50, 100 US gal total (378 L)
- LPG Instant hot: hot and cold water galley sink, head sink, shower in head, aft-deck shower
- Raw water (deck wash) and outlet fitting in aft deck
- Black water holding tank (120L/ 20 gal) with deck outlet and macerator pump out
- Purasan treatment system
AFT DECK
- Coaming lockers (2) containing storage
- Foot level LED courtesy lights & overhead LED and swim deck lighting switched from aft deck
- Stainless steel and acrylic stern gates (2) between aft deck and swim platform
- Swim platform with dinghy roller
- Transom stainless steel flag staff, removable
- Engine and lazarette hatches (2), self draining with S/S gas struts with lockable latches
UPPER STATION
- Center helm with controls & engine monitoring
- 12 V power outlet
- LED floor lighting
- Helm seat on pedestal
- Port & starboard seating with removable cushion
- Storage under helm
* Specifications subject to change due to availability and design at manufactures discretion
GENERAL ARRANGEMENT
Custom salon finishes – Wood: Cherry or Maple
Soft finishes: Tan or Grey tones
Second bathroom – starboard, shower bathroom combines, no walk-in shower
Three staterooms – split port & starboard forward berths, starboard aft quarter berth
SALON
Floor covering, Nylon marine mat with foam backing
Convertible salon table with cushions
ENTERTAINMENT
Satellite TV receiver usable with Dish/DIRECT TV in continental US
Salon TV with fold down mount
Stereo remote located aft deck
COMFORT
Custom blinds on all salon windows (accordion style)
UV/IR tint treatment on all glass
GALLEY
Electric 2-burner stove 120/220 VAC
Lower cabinet mounted convection microwave oven
Spectra Newport 109 I/h 700 MKII watermaker with fully automated operation
ELECTRICAL
Upgrade house battery bank to 22kW (16.5 included standard)
Lighting package: underwater blue LED lights, walkway & cockpit floor’s lighting, blue LED
Remote search light- Aft facing
AFT DECK

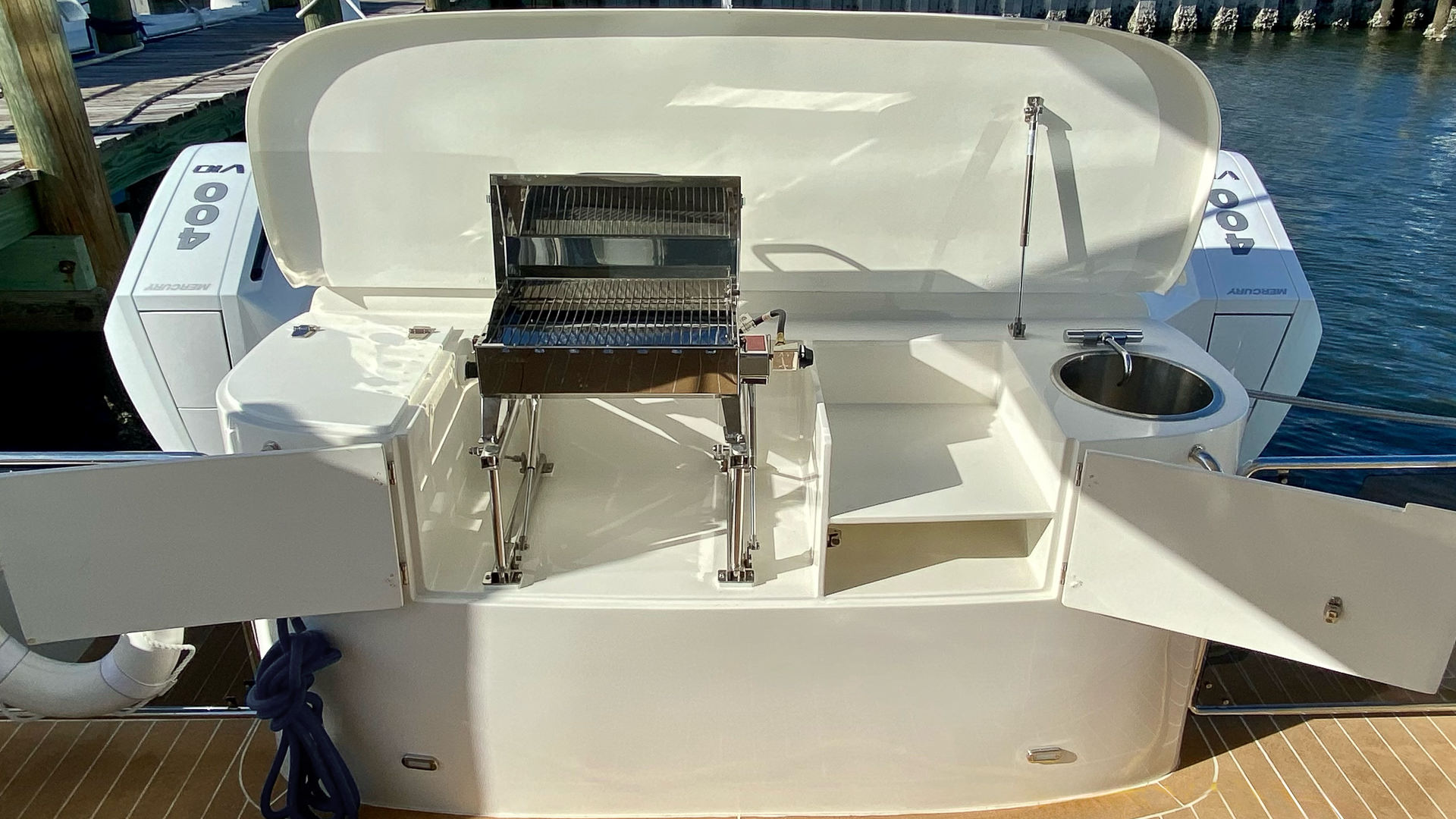

Aft deck transom- cabinet with propane grill
Rear awning with 2 LED flood lights
S/S frame work hand rails and 6 stern rod holders
HELM & ELECTRONICS
Joystick control- single station for mercury outboards
Garmin fishing electronics: GPSMAP 8612 12″ display, integrated CHIRP digital sounder module, 1000 W depth sounder, autopilot w/display, GMR 24″ HD radome, multi-display repeater in cockpit, VHF 300 marine radio with antenna & mount
Raymarine fishing electronics: G series 12″ display, DSM 300 digital sounder module, 1000 W depth sounder
AIS- automatic identification system- send and receive compatible w/primary electronics
Raymarine FLIR night vision system- MD-625 NTSC with JCU bundled fixed thermal
Camera station aft deck
Upgrade VHF with forward facing hailer
FISHING
Offshore 30 gal bait tank & high volume pump at transom
Outrigger mounts, recessed, port/starboard hardtop, Taco GS270
Power sockets for 12 V electric fishing reels
ROOF LINE
S/S Tower base for radar with tilt down rack for bridge clearance
MOORING, ANCHORING & SAFETY
Docking kit: mooring lines; 4×5/ 8″x 35′ w/spliced eye 4×8″ x 20″
Polyfoam HTM fenders, 4×8′ x 3/8″ fender whips w/ spliced eye
OTHER
Gunnel color – see Awlcraft 2000 acrylic urethane color chart
Florida factory delivery & cruising orientation
