New Model 20cc

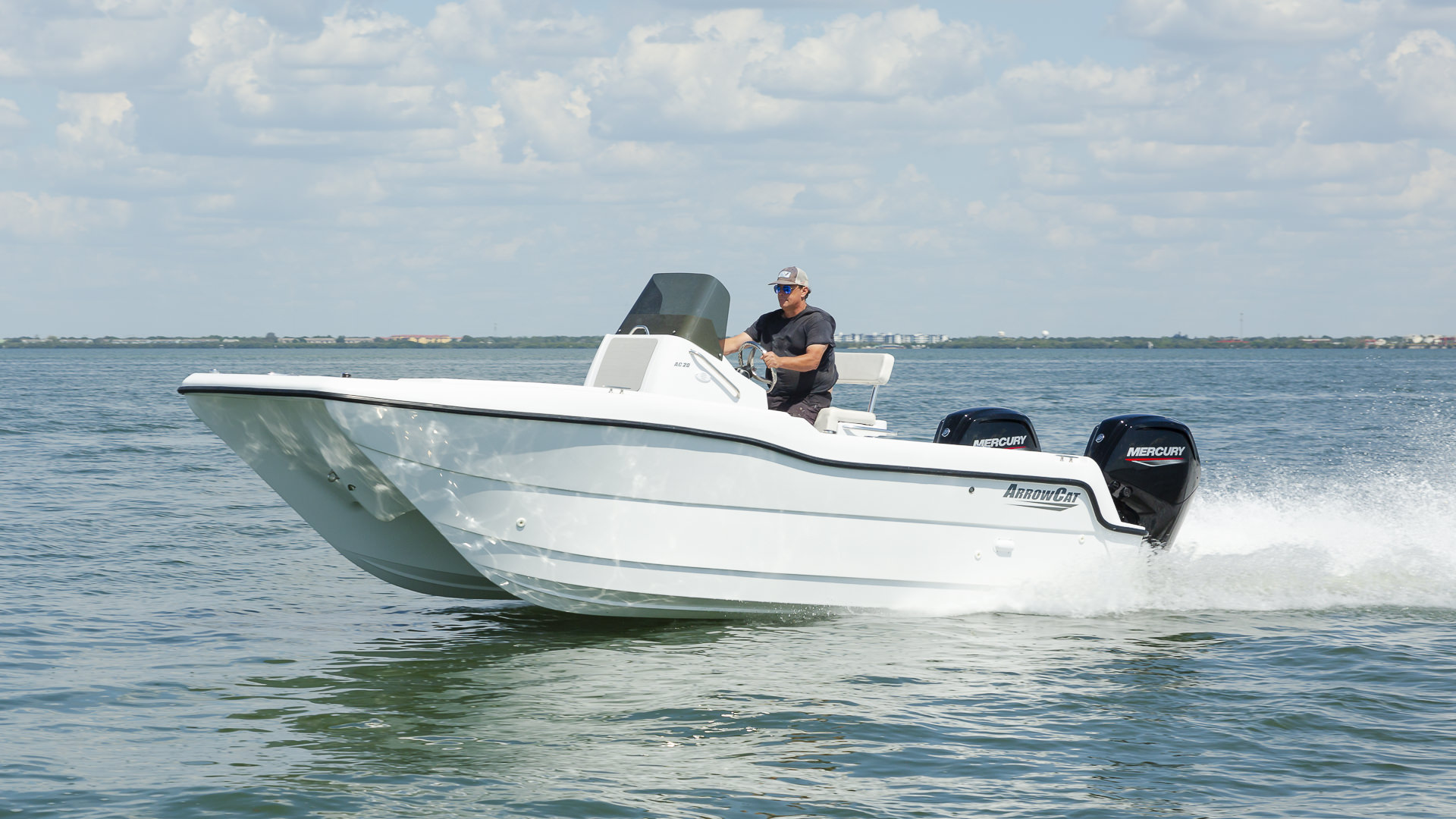

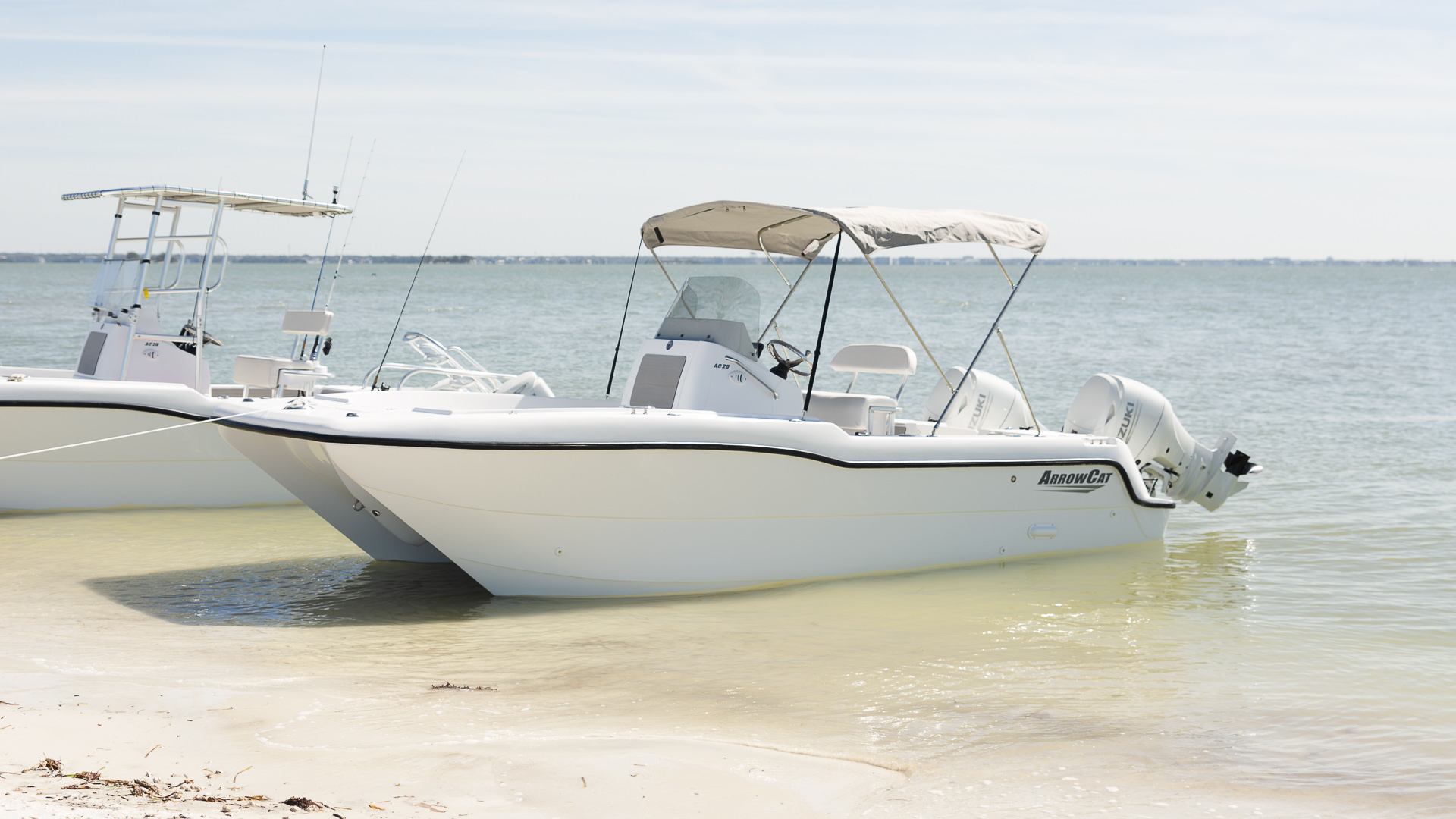

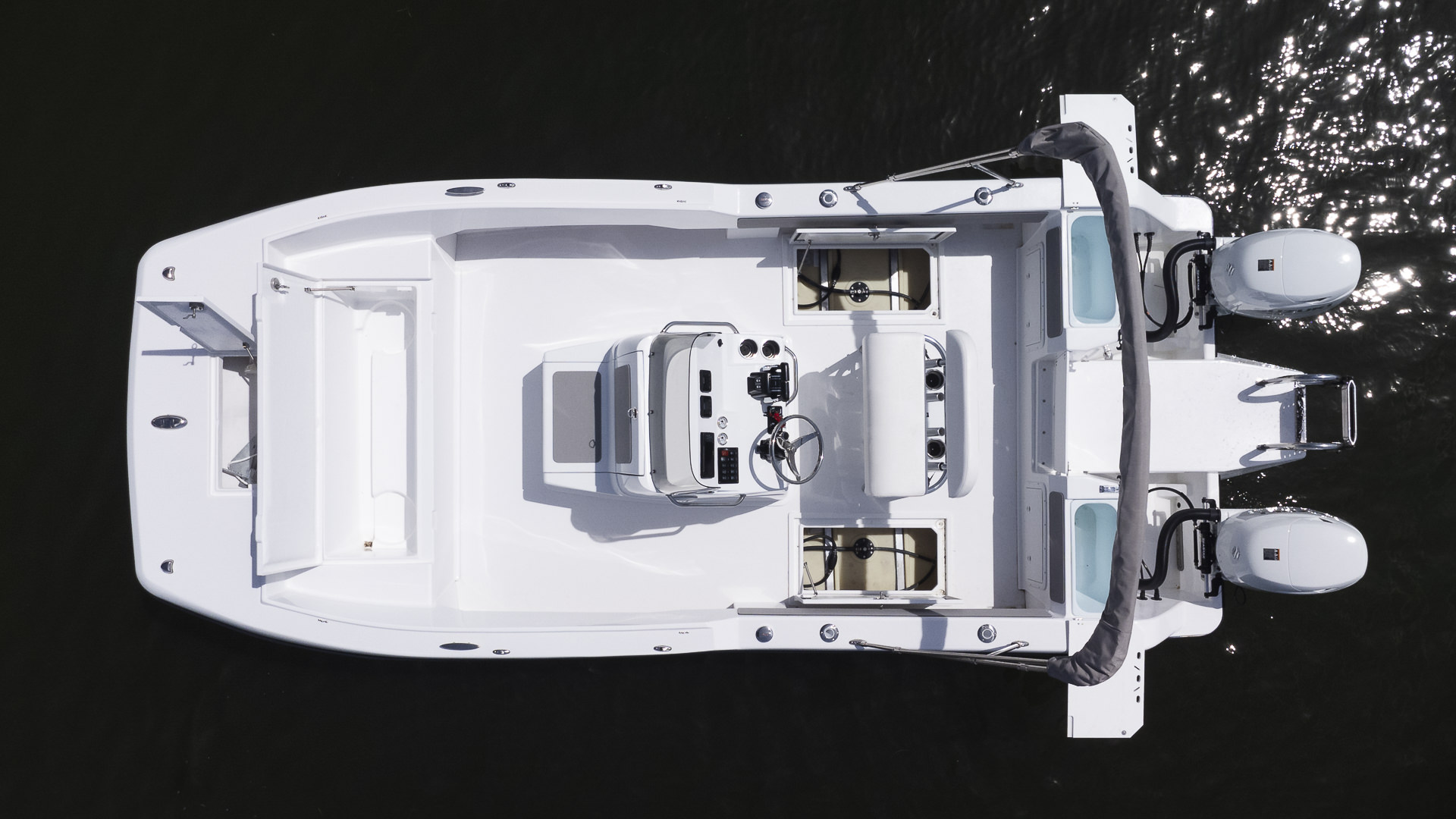

ArrowCat 20' Center Console

ArrowCat brings back the 20' center console. The 20CC is a significant addition, and there's none on the market like it. Built strong, we intentionally designed this model to be simple and plain – simple to take the boat out, simple to use and to maintain, plain by allowing you the flexibility to customize it according to your preferences, either by yourself or through a dealer. Designed simple and plain yet it's extraordinary.

The ArrowCat 20 is built using most of the same techniques and materials utilized in our larger vessels: quality gelcoat exterior, vinylester barrier coats, all-composite construction, and plenty of strength. The bow areas of the keel are reinforced with Kevlar fabric, while the transom and deck areas (mounting points) are constructed with Coosa panel. The floor and bulkheads are PVC foam cores wrapped in plenty of bi and tri-directional cloth. Foam flotation has been installed for positive buoyancy, and an EPA-certified fuel system is installed, accessible below deck.

Highlights

Power Cat
Center Console
Planing Hull Design
100% Composite Materials
NMEA 2000 Digital Monitoring
316 Stainless Hardware
Dual Battery Switches
20" or 25" Transom Option
Positive Floatation Foam

Specifications

LOA - 19'4"
Beam - 8'4"
Draft - 10"
Fuel - 2x23 Gal
Max Recommended HP - 180
Standard Transom Height - 25"
Dry Weight (Appx) - 2,900 Lbs
Capacity - 7 person or 1,800 Lbs

Built By ArrowCat In Clearwater, Florida

20CC

20' center console drawling
20' center console drawling
20' center console boat design drawling

Motor Packages

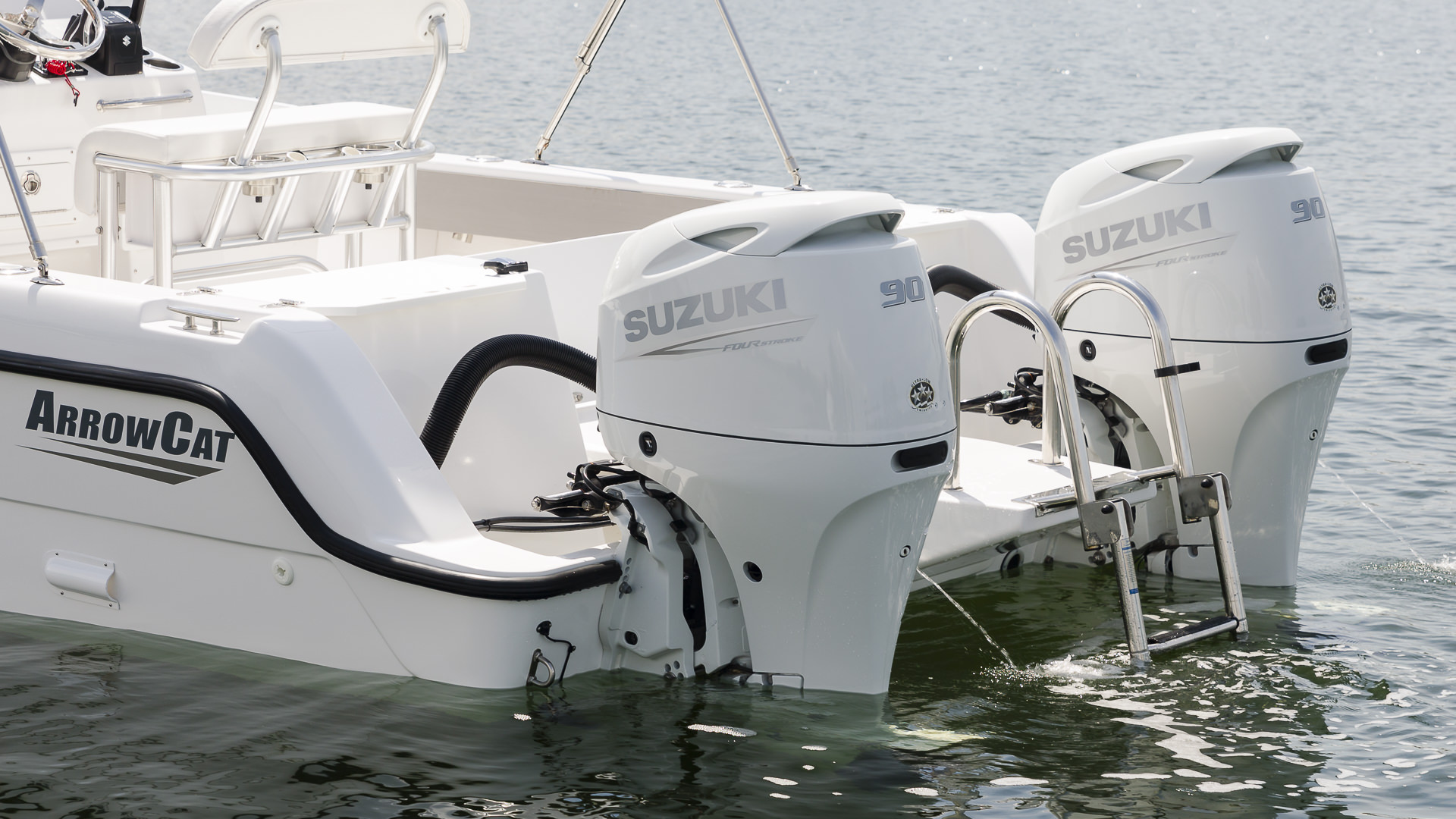

Dual 60 HP – Dual 90 HP – Single 150 HP Mercury Four Stroke, Aluminum Props · Dual 60 HP – Dual 90 HP – Single 150 HP Suzuki Four Stroke, Aluminum Props · Other Packages Available Based On Availability

Standard Features

Seat – Leaning Post With Backrest
4 Flush Mounted SS Rod Holders
2 Automatic Blilge Pumps
Nav Lights & Anchor Light
10 Gang Switch Panel
Positive Foam Floatation
Non- Skid Walking Surfaces
Non- Skid Self Bailing Deck
Transom Walkthrough With Door
Large Storage Locker Forward
Anchor Locker (Bow)

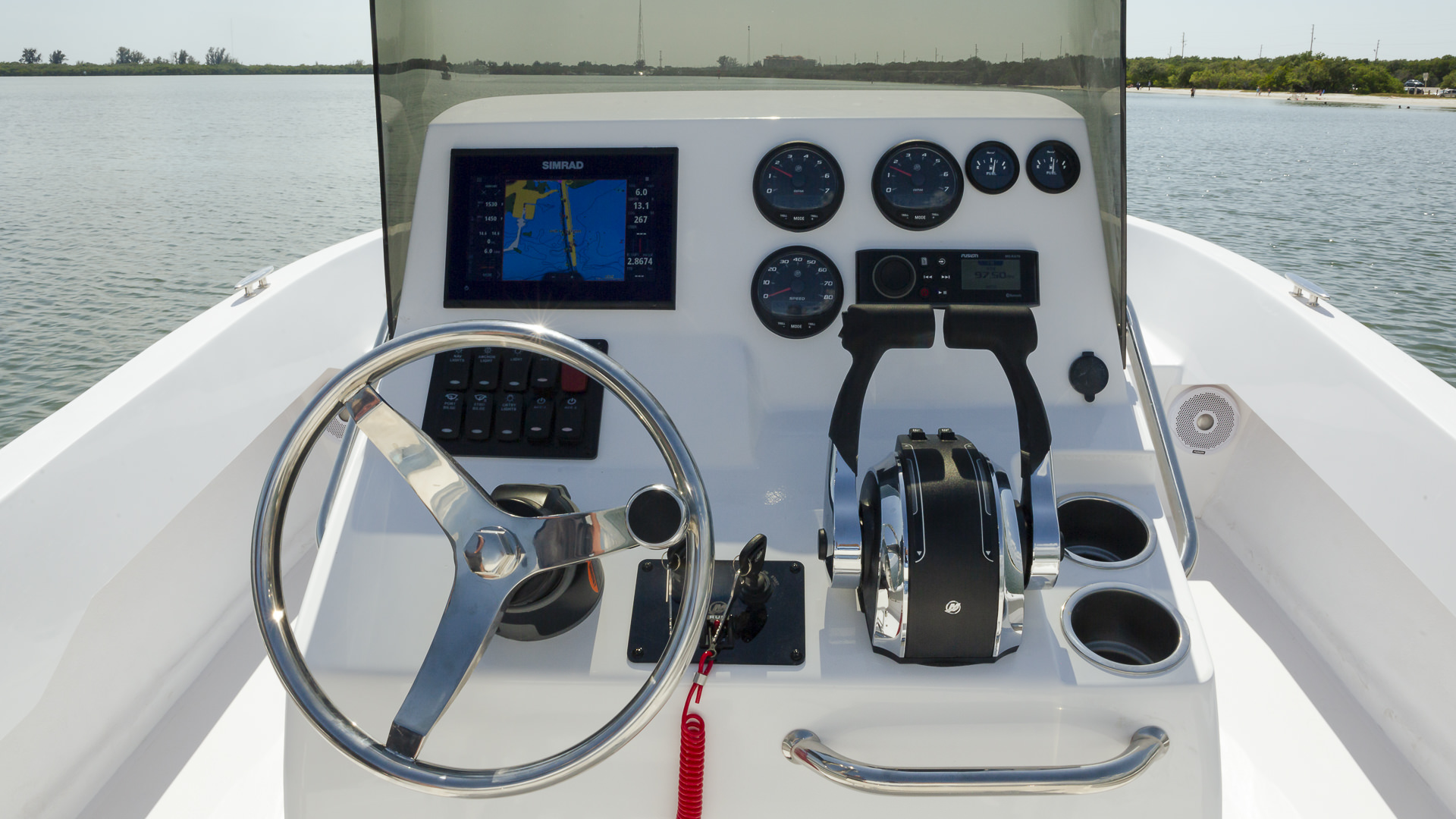

Storage In Console
Bow Eye
2 Stern Eyes
5 Stainless Steel Cleats
5 Year Hull Warranty

Options Available

Swim Step With Folding Ladder

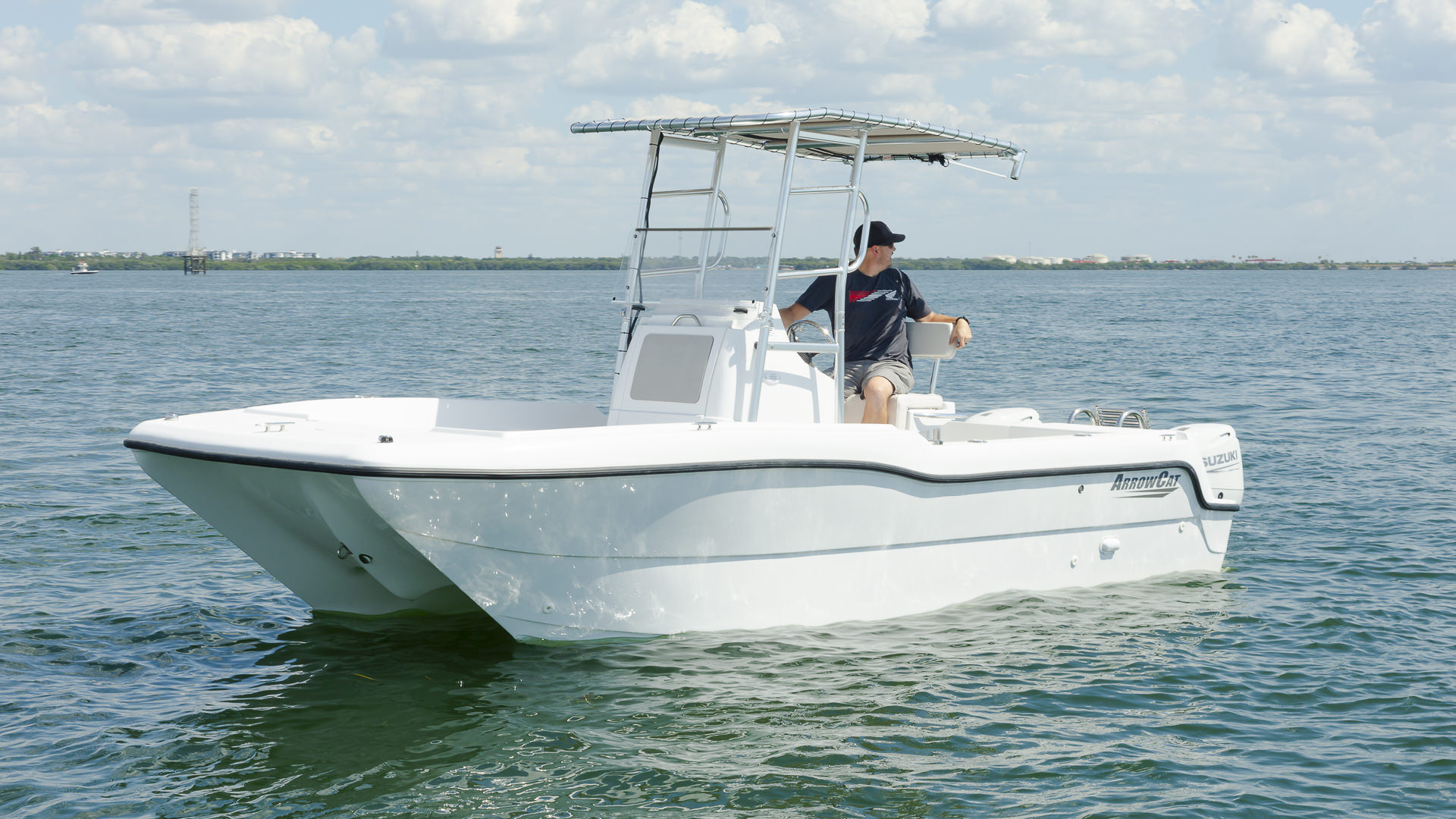

Folding T-Top (Aluminum)
Folding Windshield
Bow Rails (Aluminum)
Stereo (Bluetooth, AM/FM 2 Speakers)
VHF – Standard Horizon GX 1400

ArrowCat 20cc performance numbers
