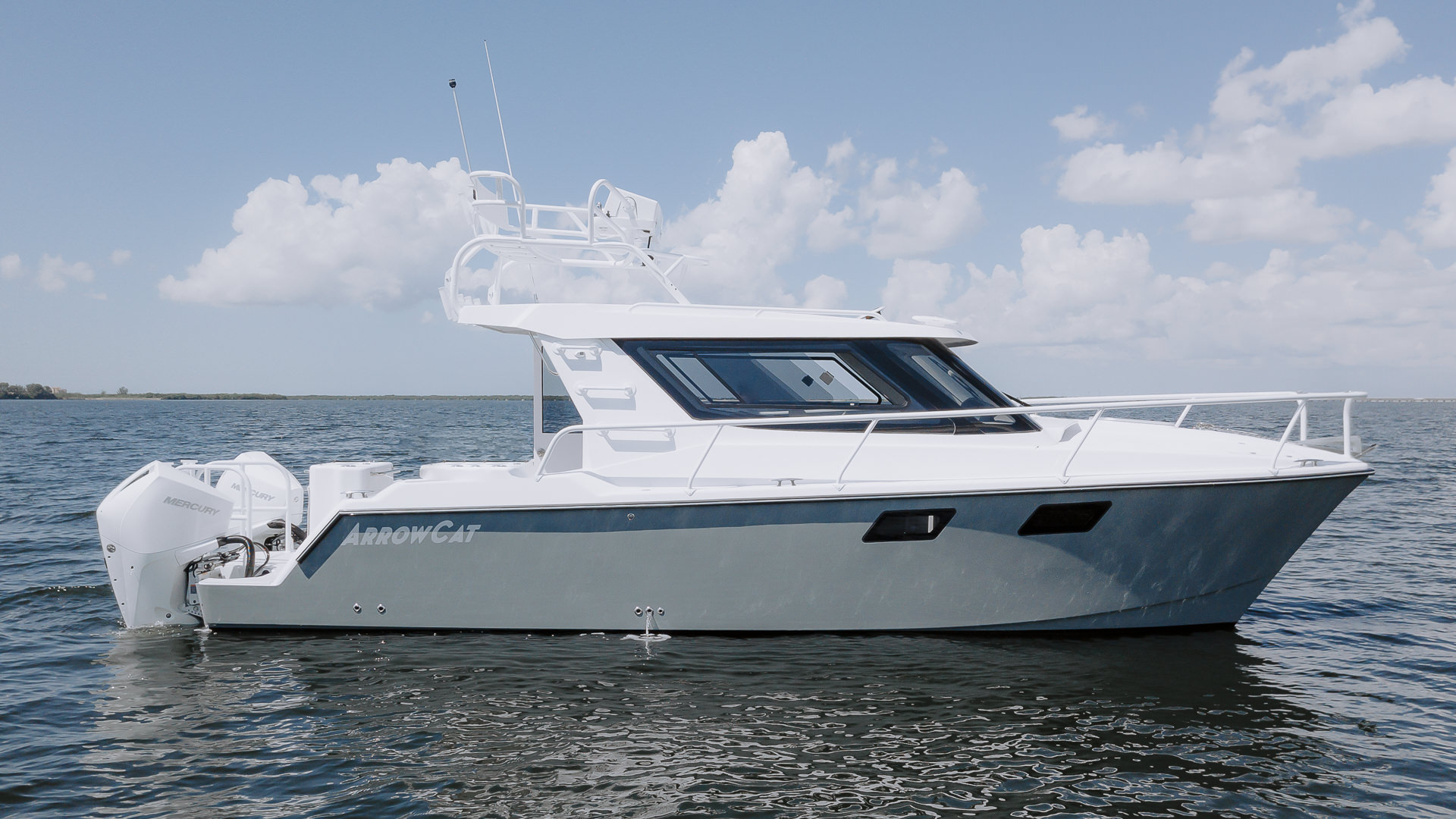

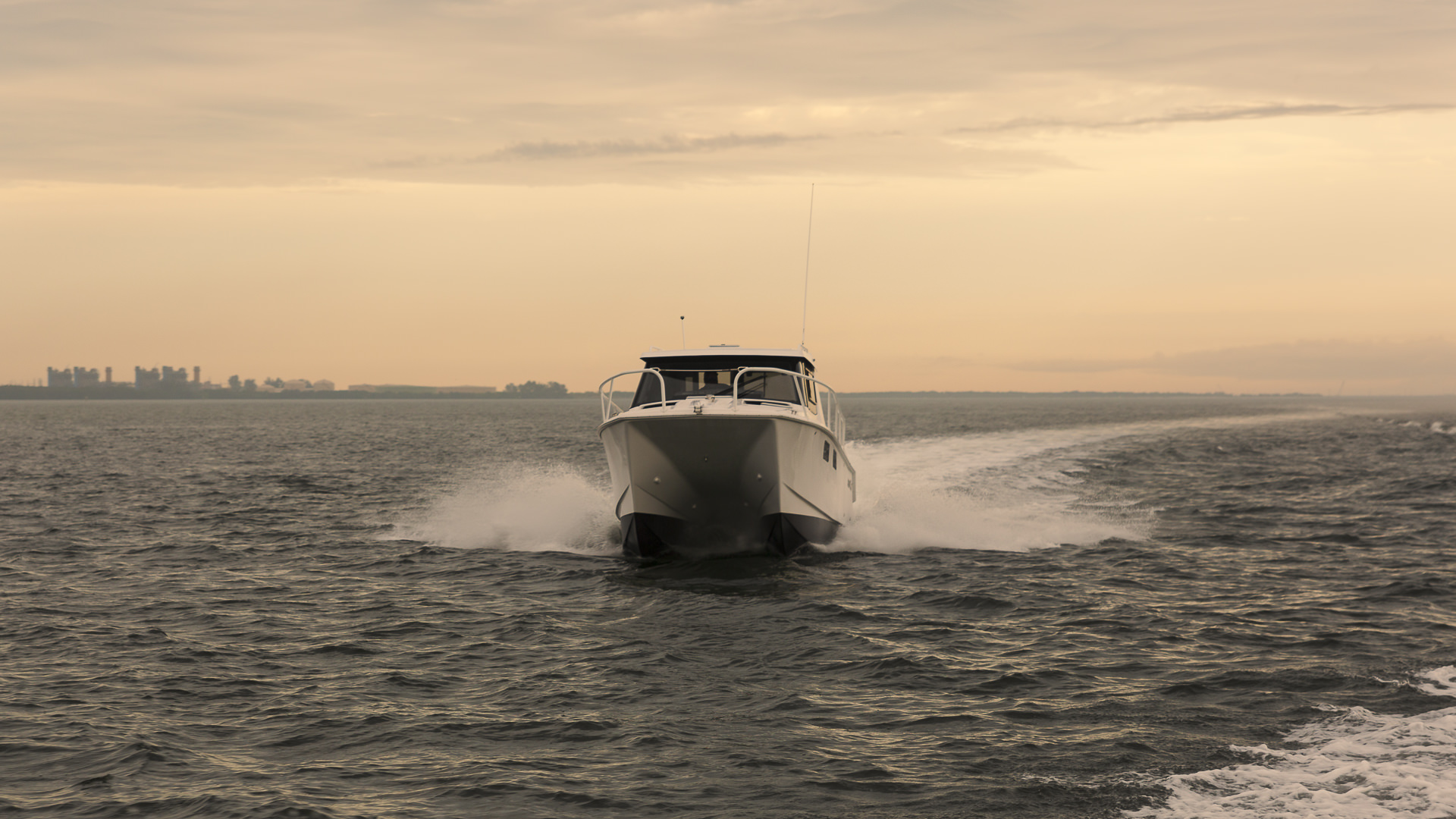

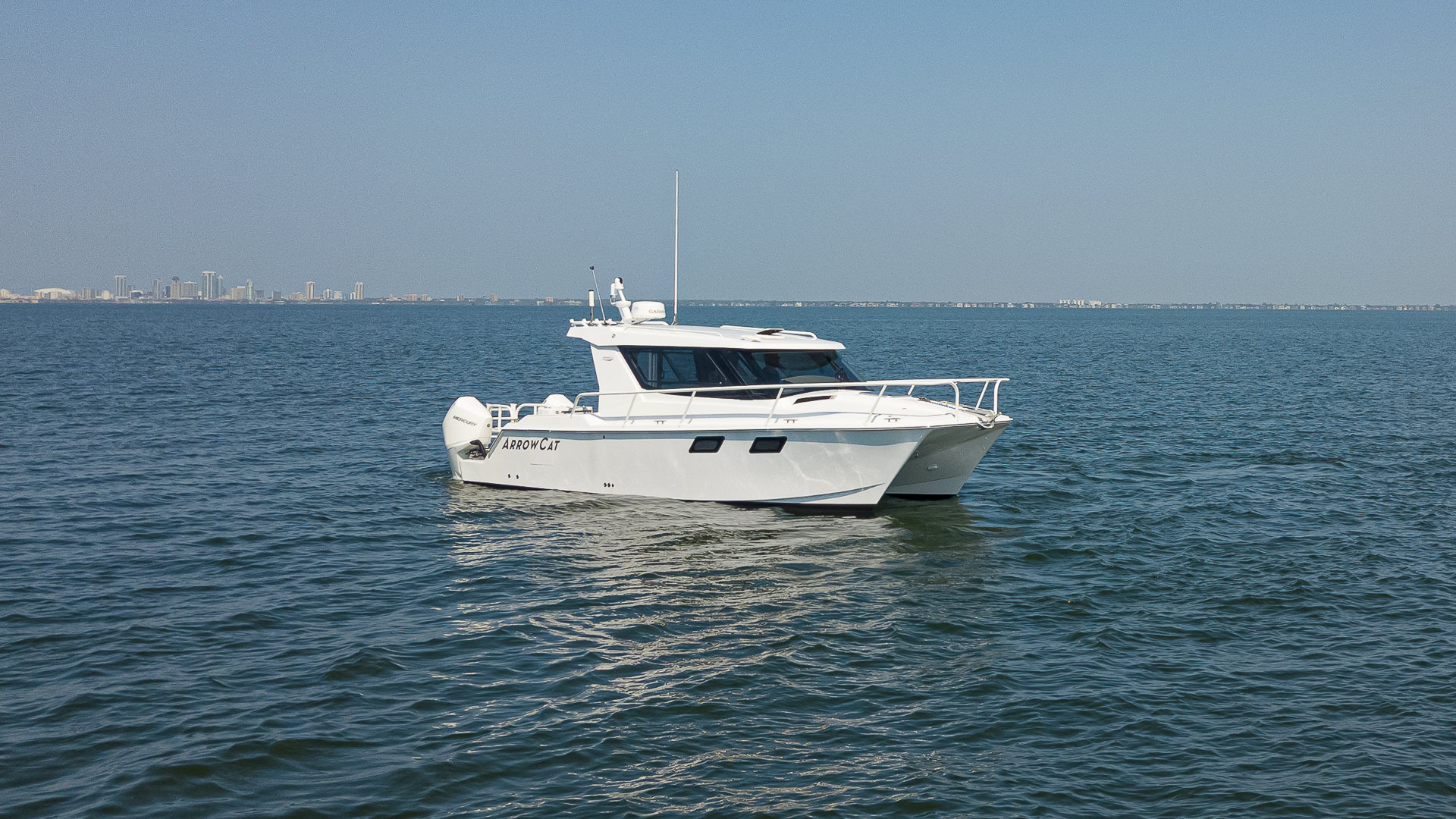

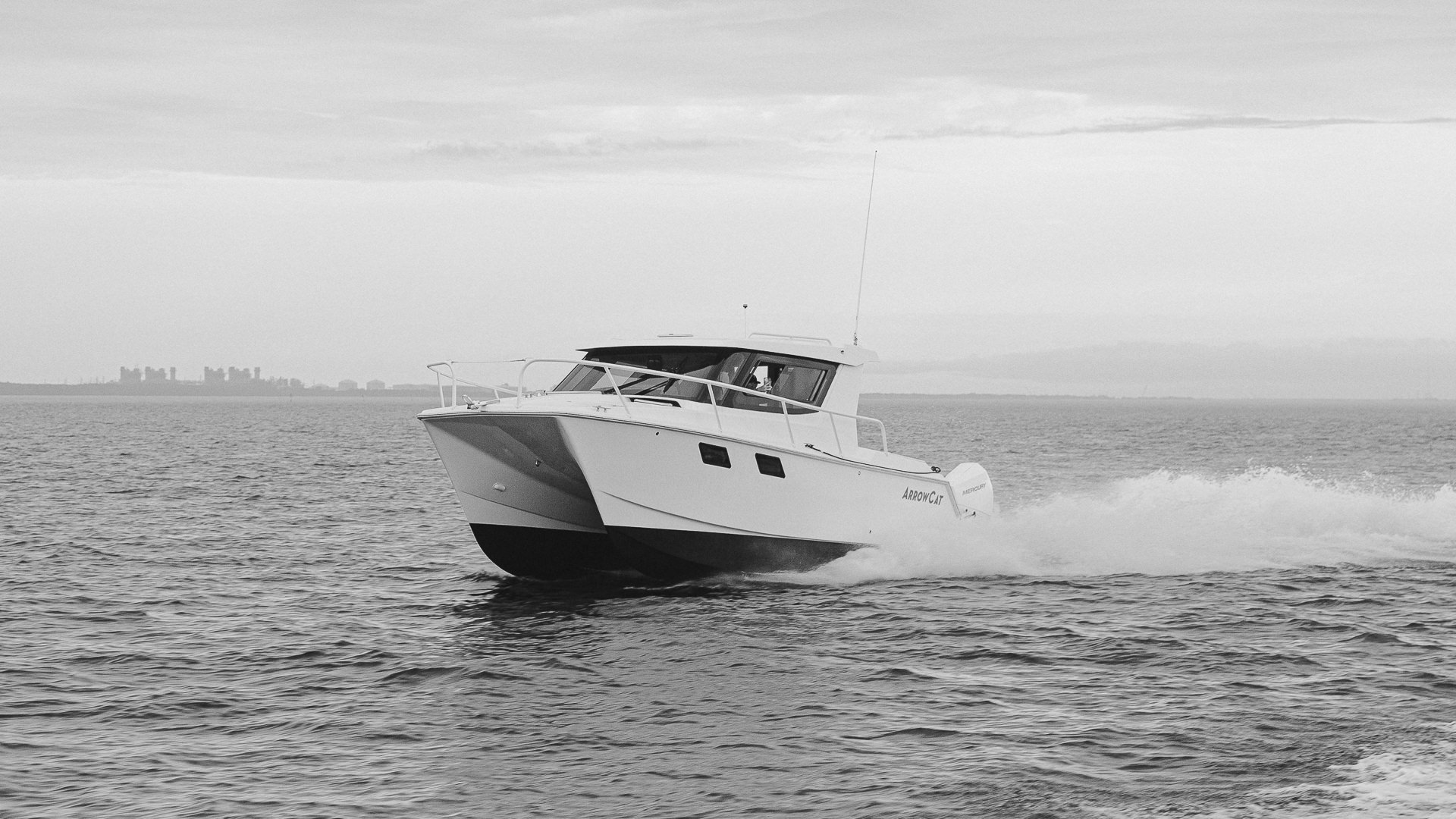

Unlock Your Sense Of Adventure On The ArrowCat 320
Now in its third generation, the ArrowCat 320 express cruiser has literally defined the high end cruising cat market! At the helm you find the experience more refined, from the custom hardwood steering wheel to full digital controls and instrumentation and carbon fiber accents. Every ArrowCat power catamaran features our signature luxurious interior cabin with creature comforts other boat companies have only dreamed about. Add to this that the ArrowCat 320 is trailerable with a 10’ beam and your cruising grounds expand exponentially. Winter in Florida, summer up north and plan the trip of a lifetime around the Great Loop.



Specifications
Express Cruiser
Catamaran Hull
Planing Hull Design
Twin Outboard Motors
LOA Length over all: 31′ 2″/9.50 meters
Length at the waterline: 25′ 11″/7.9 meters
Beam: 10’/3.05 meters
Draft: 20″/.508 meters
Fuel: 196 gal/742 liters
Water: 44 gal/167 liters
Waste: 14 gal/53 liters
Displacement Dry: 9,900 lbs (approx.)
Boat & Motor Packages
- Mercury w/SS Props and Digital Controls 2×225 HP
- Mercury w/SS Props and Digital Controls 2×250 HP
- Mercury w/SS Props and Digital Controls 2×300 HP
- Other Motor Packages Available Based on Availability
ARROWCAT 320
- Hull gelcoat color white and hull graphics
- Rich wood detailing choice of maple or cherry
- Option color choice hullside stripe (AWLCRAFT 2000)

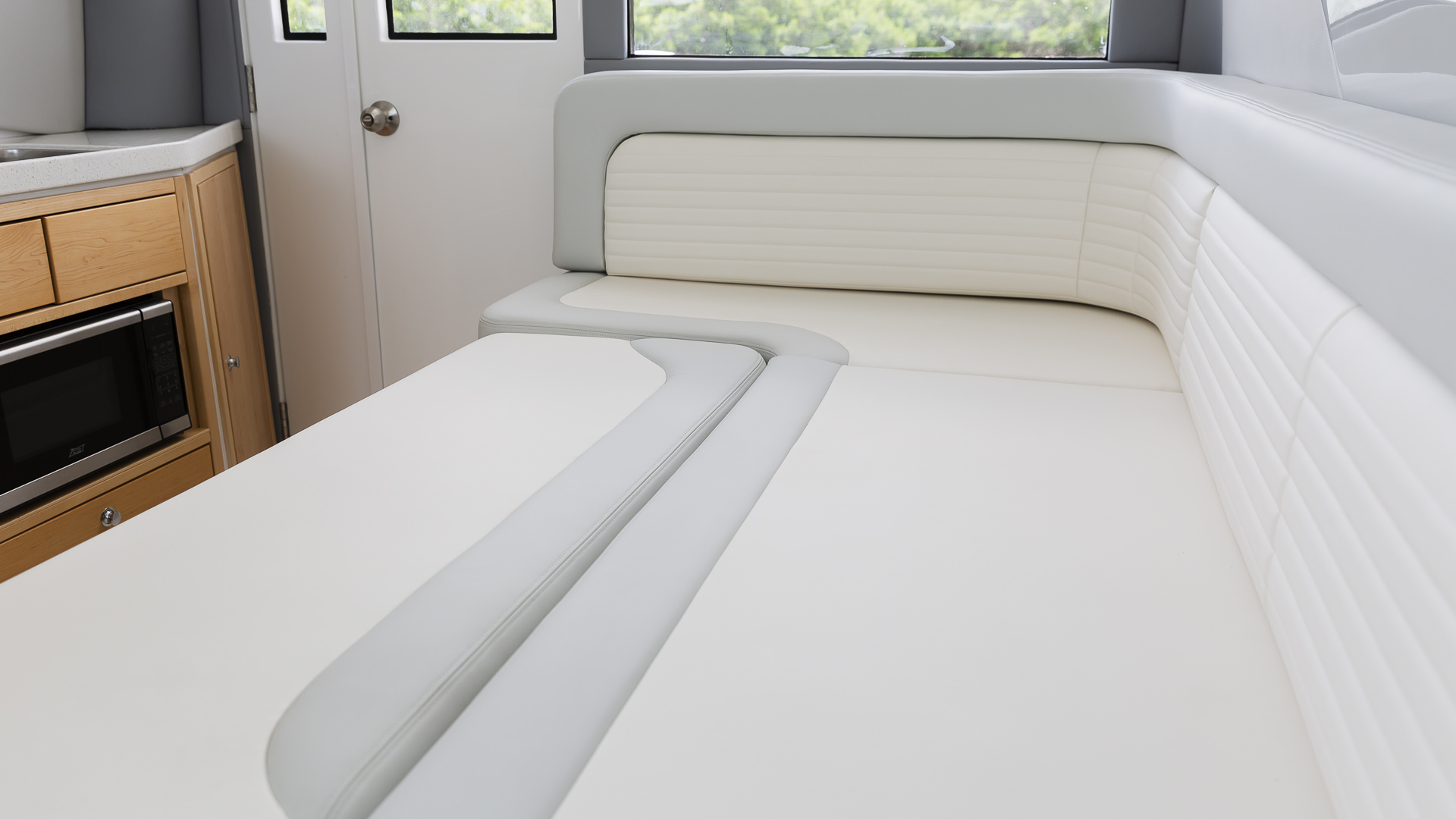

- Raised settee port with plush lounge seating and integral storage compartments
- Galley layout with starboard/full berth forward/quarter berth amidships port

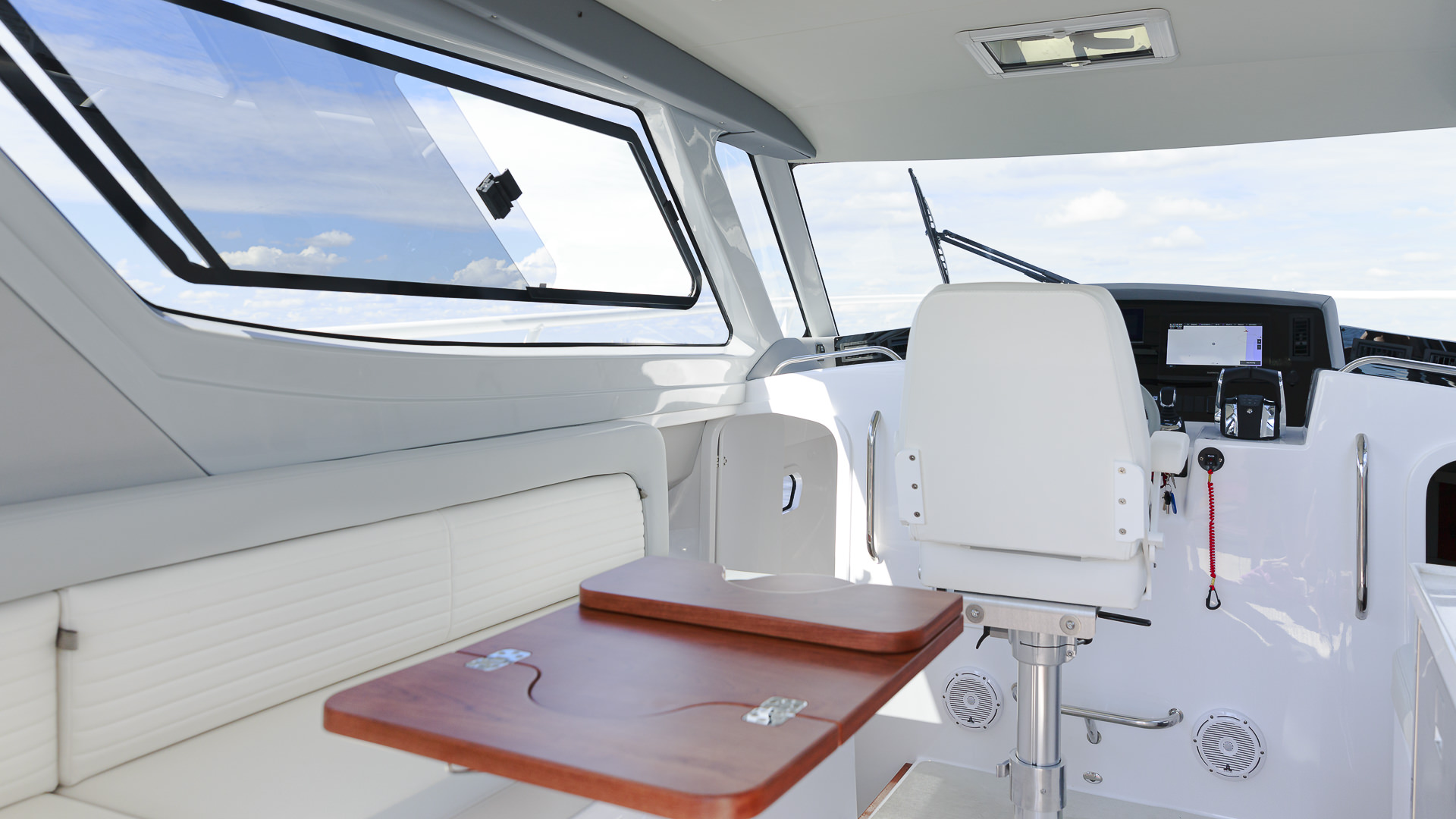

SALON
- All weather bulkhead enclosure with locking door between salon and aft deck
- Stowable companionway floor panels boards
- Opening rear & side windows
- Hullside lights fixed (4)

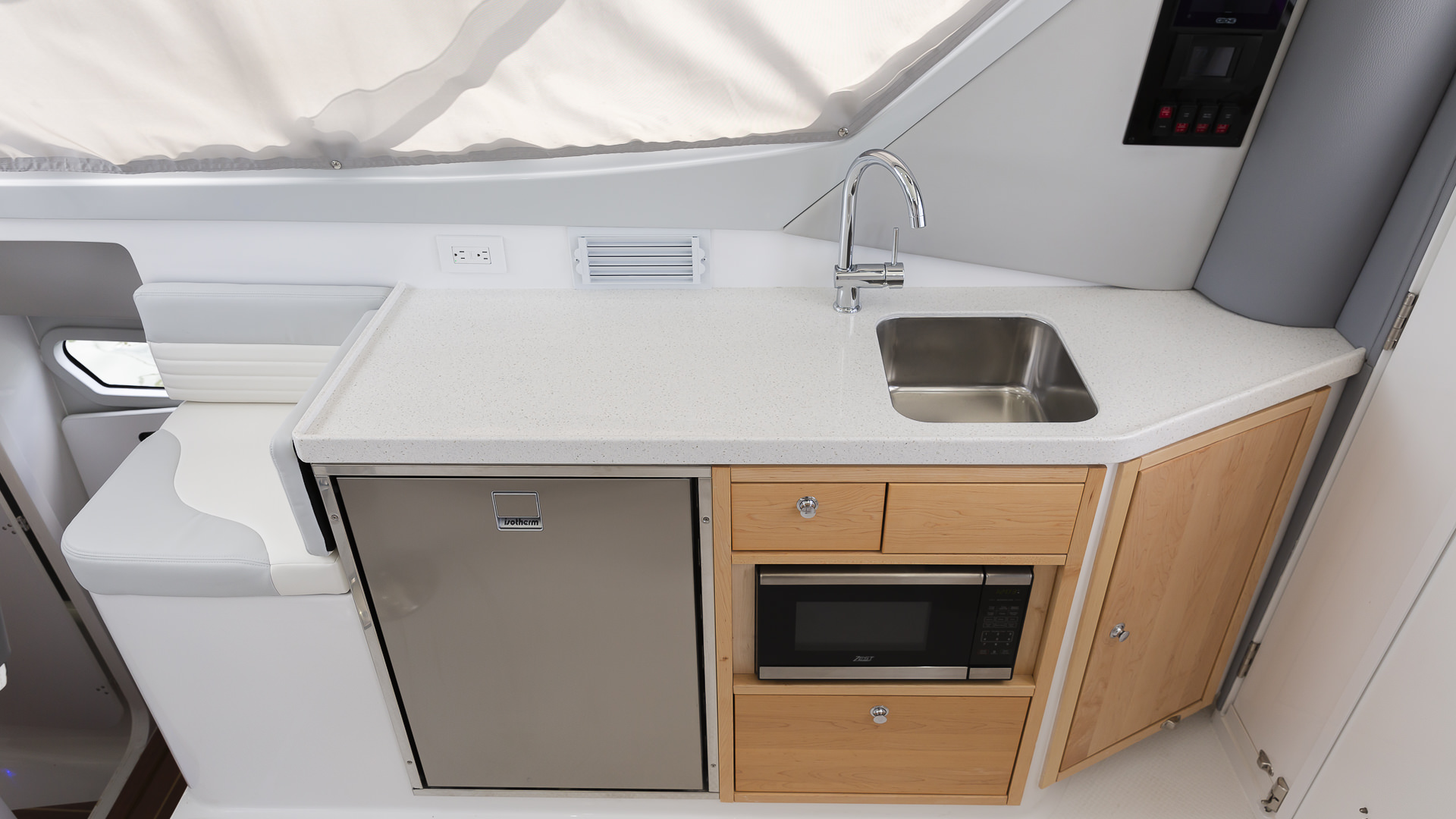

GALLEY
- Fridge/Freezer: Isotherm drawers style or XL C130 refrigerator, stainless finish
- One piece acrylic galley counter top with stainless steel sink, hot/cold faucet with four wood finish drawer

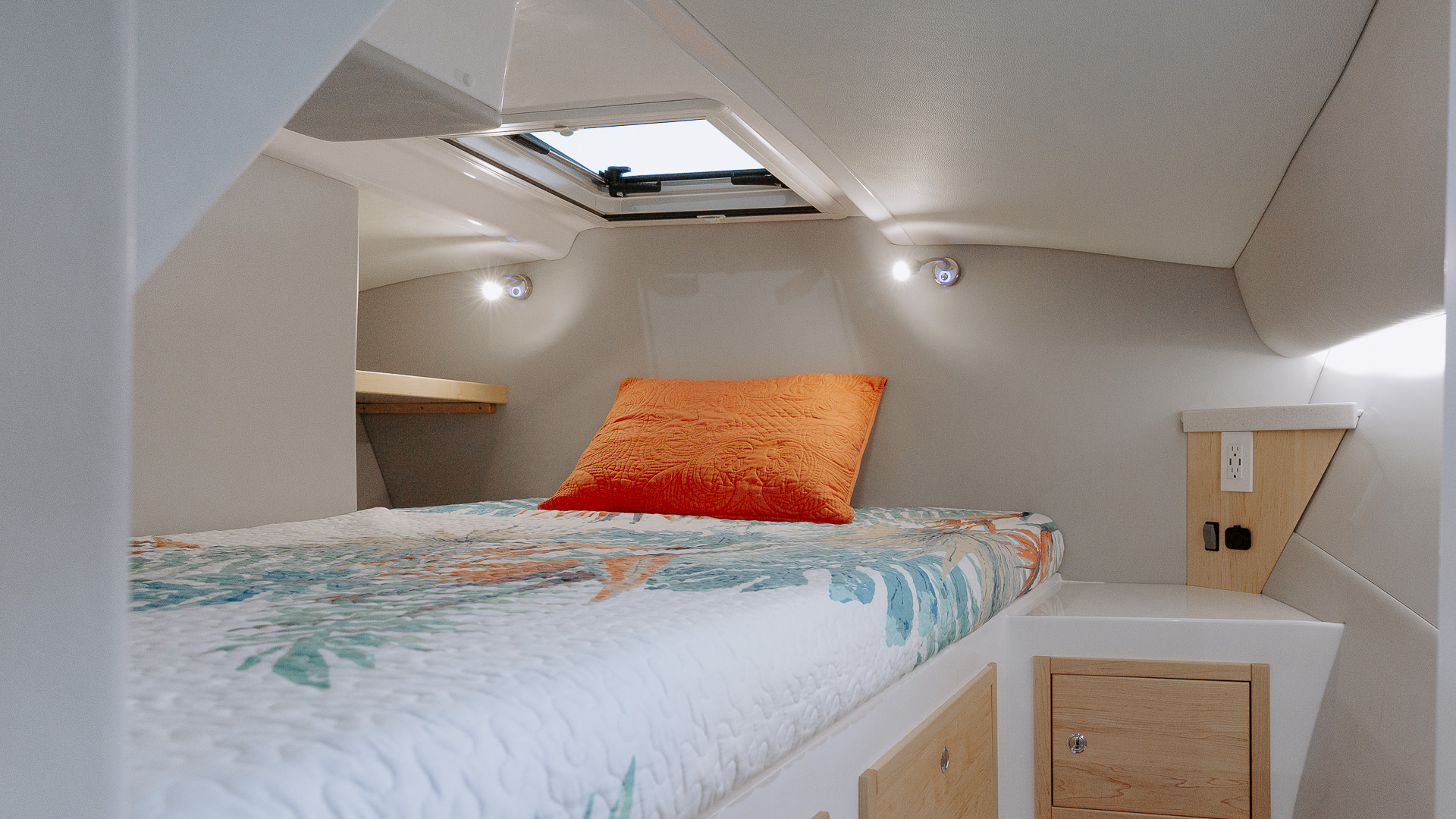

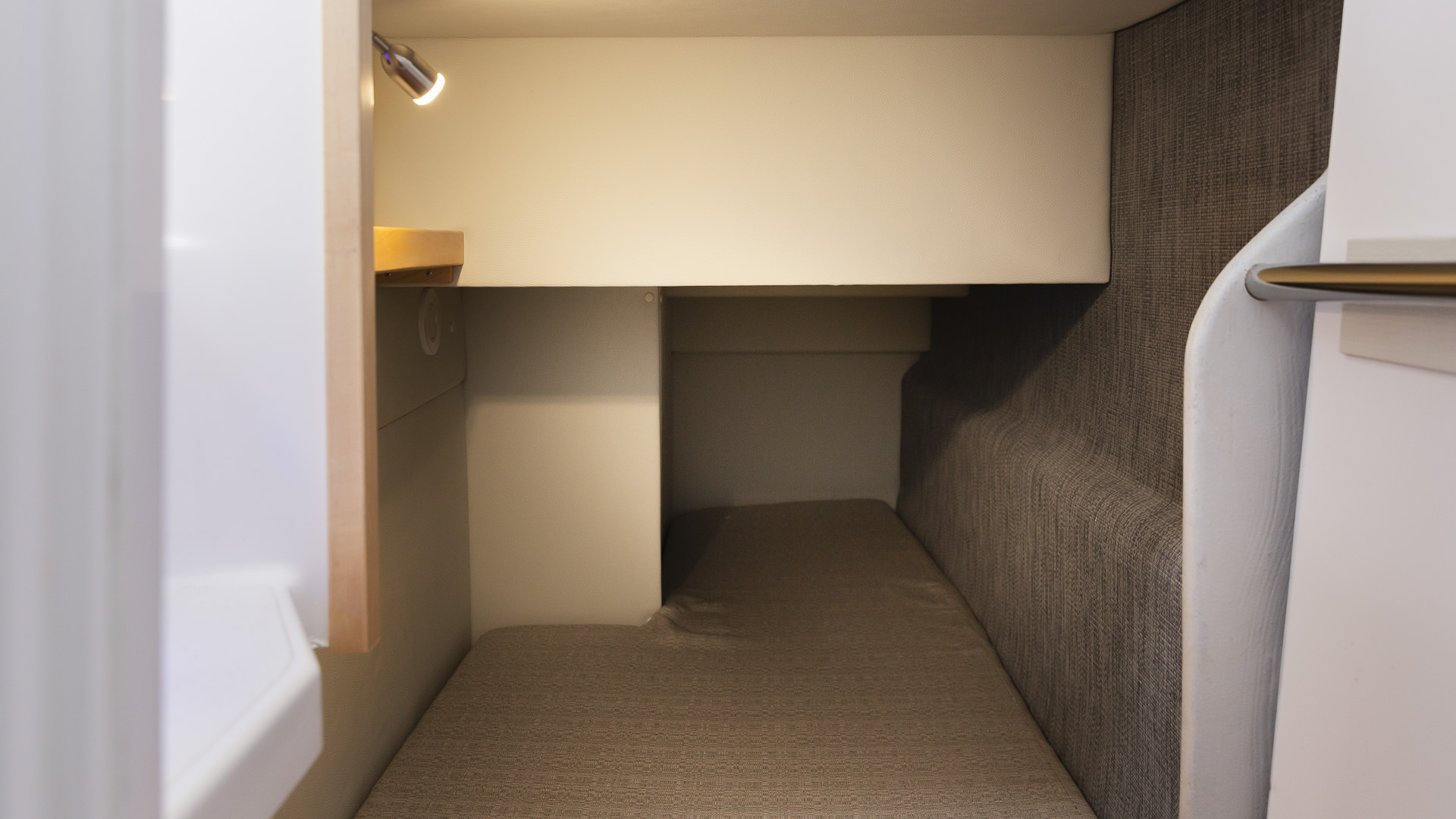

BERTH
- Bedside reading lights with light switches (2)
- Mattresses: one forward berth, one port side berth in the high quality foam with durable breathable fabric covers
- 110 V outlet, USB power source

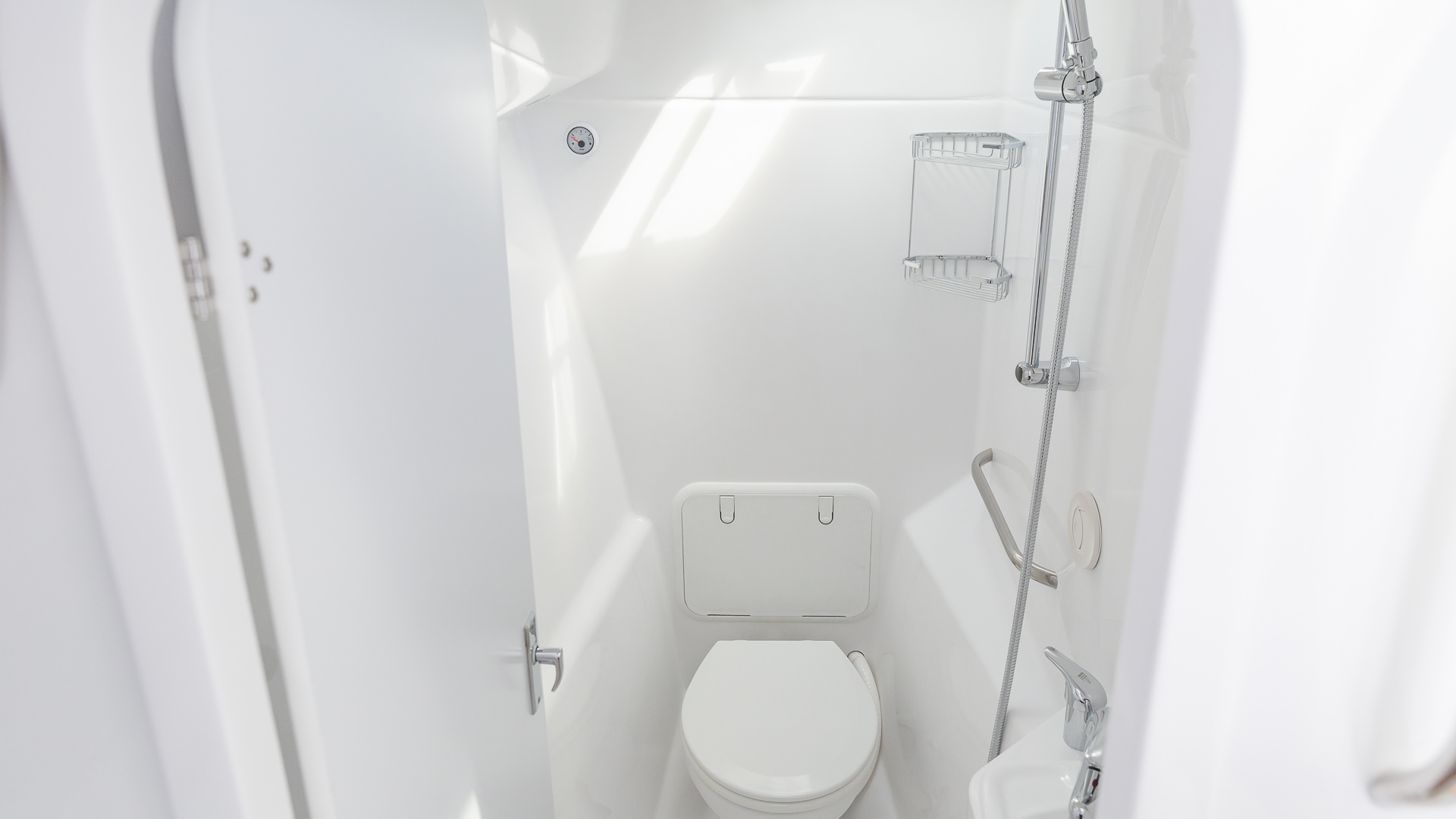

HEAD (BATHROOM)
- Automatic shower and sink (grey water) pump with manual override
- Hot/Cold sink faucet and shower mixer
- Fully equipped head: electric toilet, hot/cold shower, sump pump, sink, mirror, shelves, and vanity
- Fresh water flush toilet
- 14 gal blackwater holding tank self draining discharge (no macerator required)
ANCHORING & MOORING
- Deck cleats (7), (2) bows, (2) sterns, (2) midship and a deck cleat at windless
- Deck hatches at bow for ground tackle access
- Windlass Lewmar (7mm-1/4”) helm and foot switches at bow
ELECTRICAL
- 12 V accessory outlet and dual USB charging station mounted on dash
- Battery management system: 3 independent battery banks, (2) engine and house battery. Emergency cross-over with automatic charging relays to allow engines to charge house batteries
- CombiMaster 3000 watt inverter wired to AC/ DC voltage, battery state of charge
- Electric water heater 6 gal
- Galvanic Isolator (30 A)
- Group 27 AGM start batteries (2)
- Lithium house battery
Shore power 110 VAC 30 A inlet, (4) 110 V outlets: galley top, head, 8-way breaker with shore/ship power interlock switch
ENGINE SYSTEM
Fuel tanks 2X 98 gal, total of 196 gal Marine certified twin tanks with independent spin on fuel filters

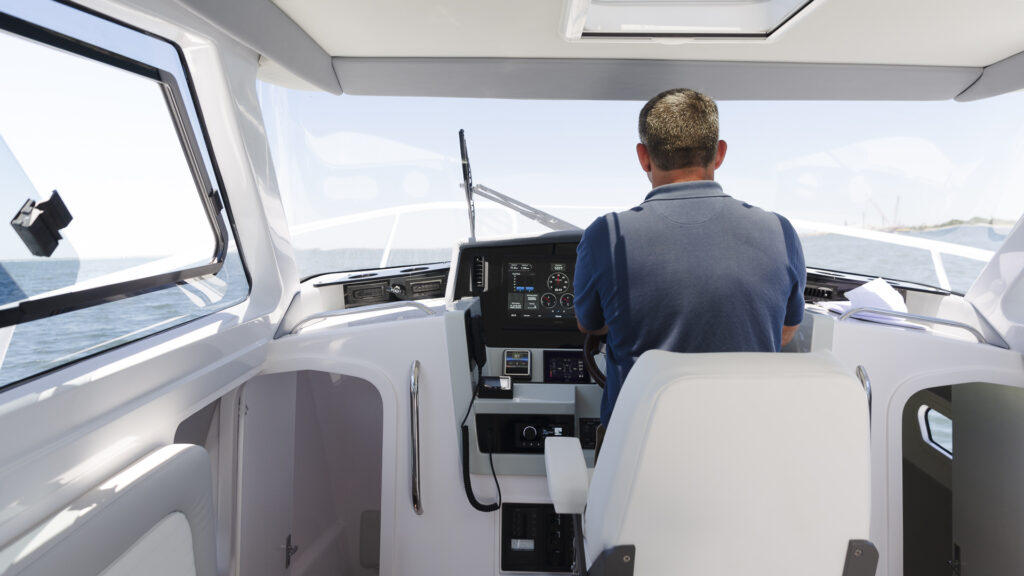

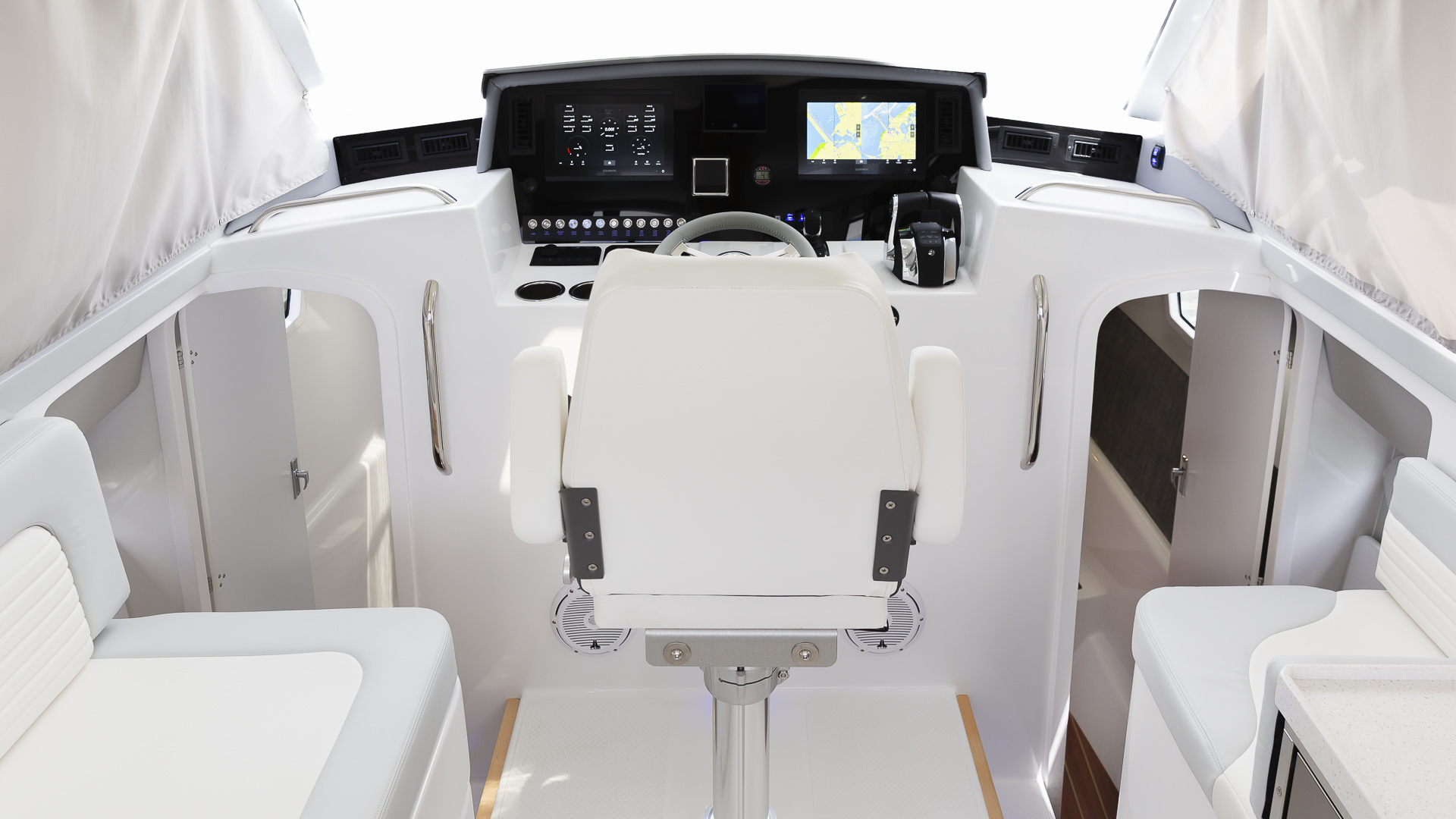

HELM & ELECTRONICS
- Heavy duty three speed intermittent windshield wiper & fresh water wash system
- Digital controls
- Electric power assisted hydraulic steering. Helm pump, engine mounted cylinders, steering wheel, alignment valve and premium hydraulic hoses
- Electric horn, ABYC certified
- Custom helm chair with flip-up bolster, slider, pedestal in matching upholstery with height adjustable pedestal
- LED interior lighting: salon down lights (6), head compartment down- light (1), main berth lights, quarter berth light, walkway and cockpit floor lighting, spot light on the bow with dash mounted remote control
AFT deck/exterior, AFT overhead light
SAFETY
- Automatic bilge pumps: 1100 GPH (2) 750 GPH (2)
WATER SYSTEM
- Fresh water tanks: 44 gal USA FDA certified, 2x 22 gal
- Hot and cold water galley sink, head sink, shower in head, aft-deck shower
- Raw water (wash down) and outlet fitting in aft deck
AFT DECK
- Aluminum Folding dive ladder (4) step count
- Two aft seats with storage compartments with removable cushions
* Specifications subject to change due to availability and design at manufactures discretion
GENERAL ARRANGEMENT
Companion helm seating with adjustable height, swiveling seat, fixed foot rest
ENTERTAINMENT
Entertainment package – Stereo AM/FM/Aux, bluetooth, 2 interior, 2 exterior speakers
Stereo remote located aft deck
COMFORT
Cabin fans (x3)
V-Kool windsheild and side windows
GALLEY
Built in electric 2-burner cooktop 120 VAC, induction style & microwave
ELECTRICAL
Generator NextGen 3.5 kW diesel
AFT DECK
Aft deck transom- cabinet with propane grill
Sea deck for cock pit sole
Table base in cockpit
HELM & ELECTRONICS
Joystick control- single station by SeaStar
Garmin or RayMarine Electronics package:
Dual display with charts and sounders, VHF radio at helm w/ 8′ antenna on ratchet mount. 50/200 kHz depth transducer
Upgrade primary electronics to dual 16″ displays
FISHING

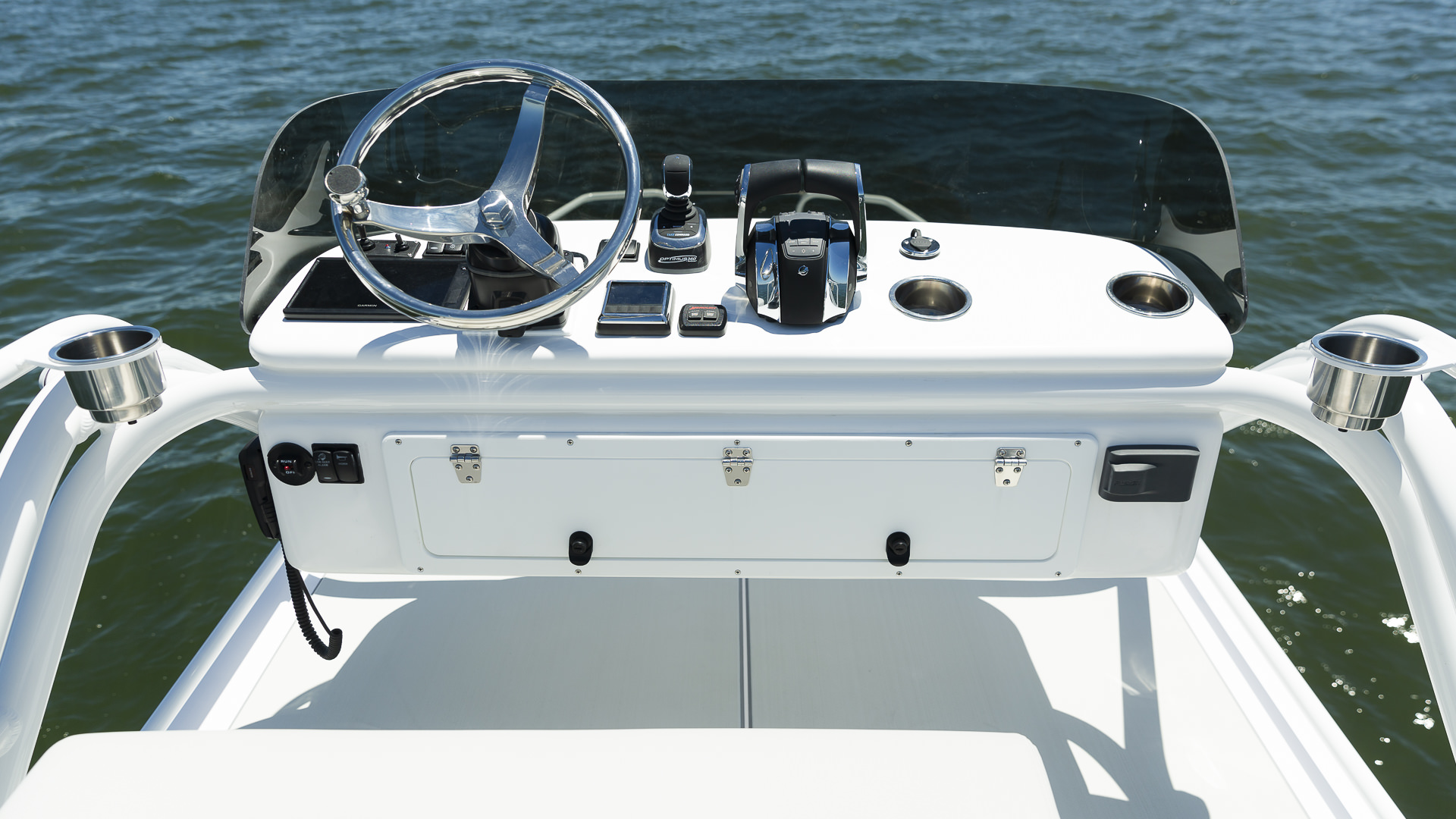

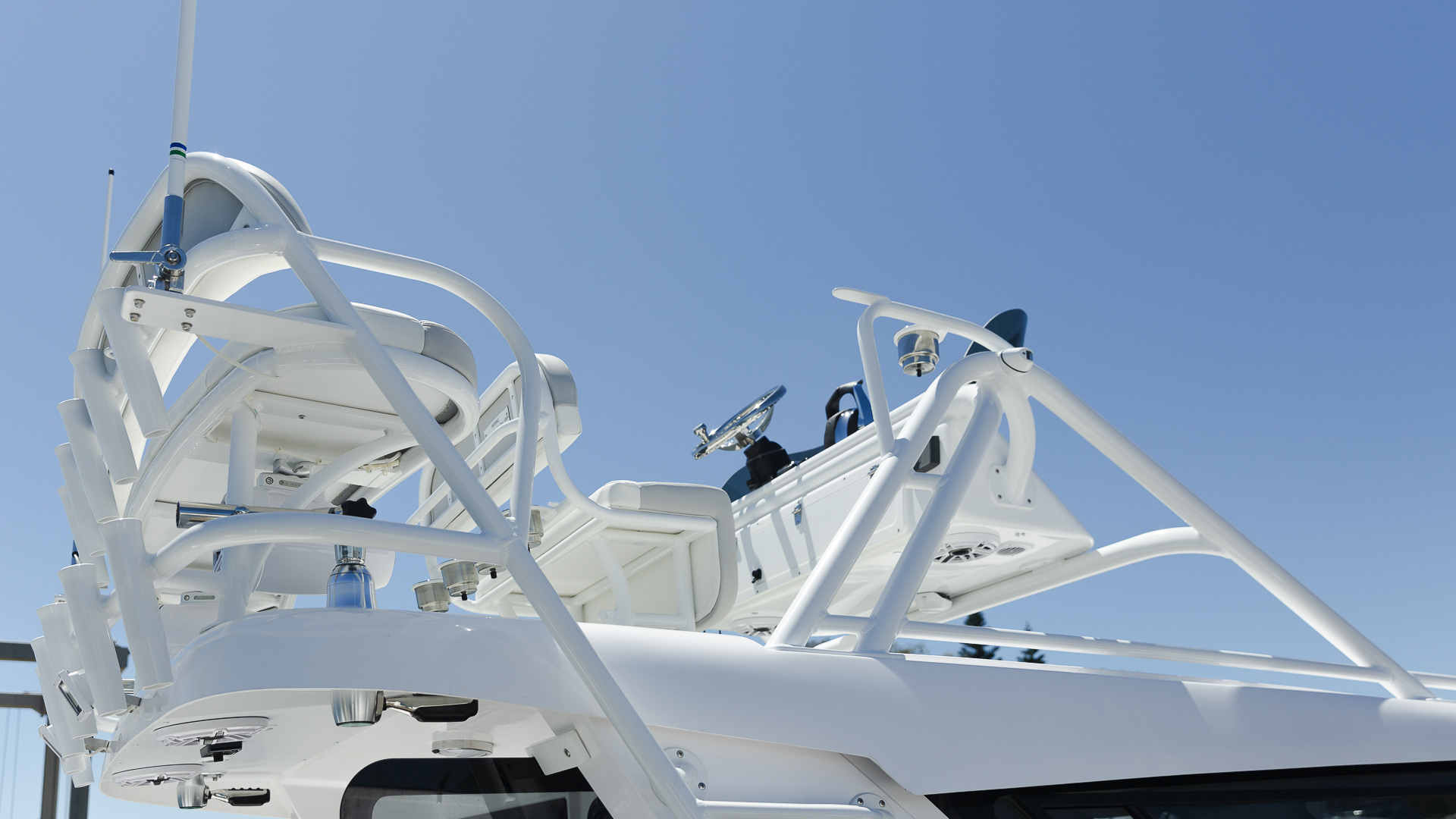

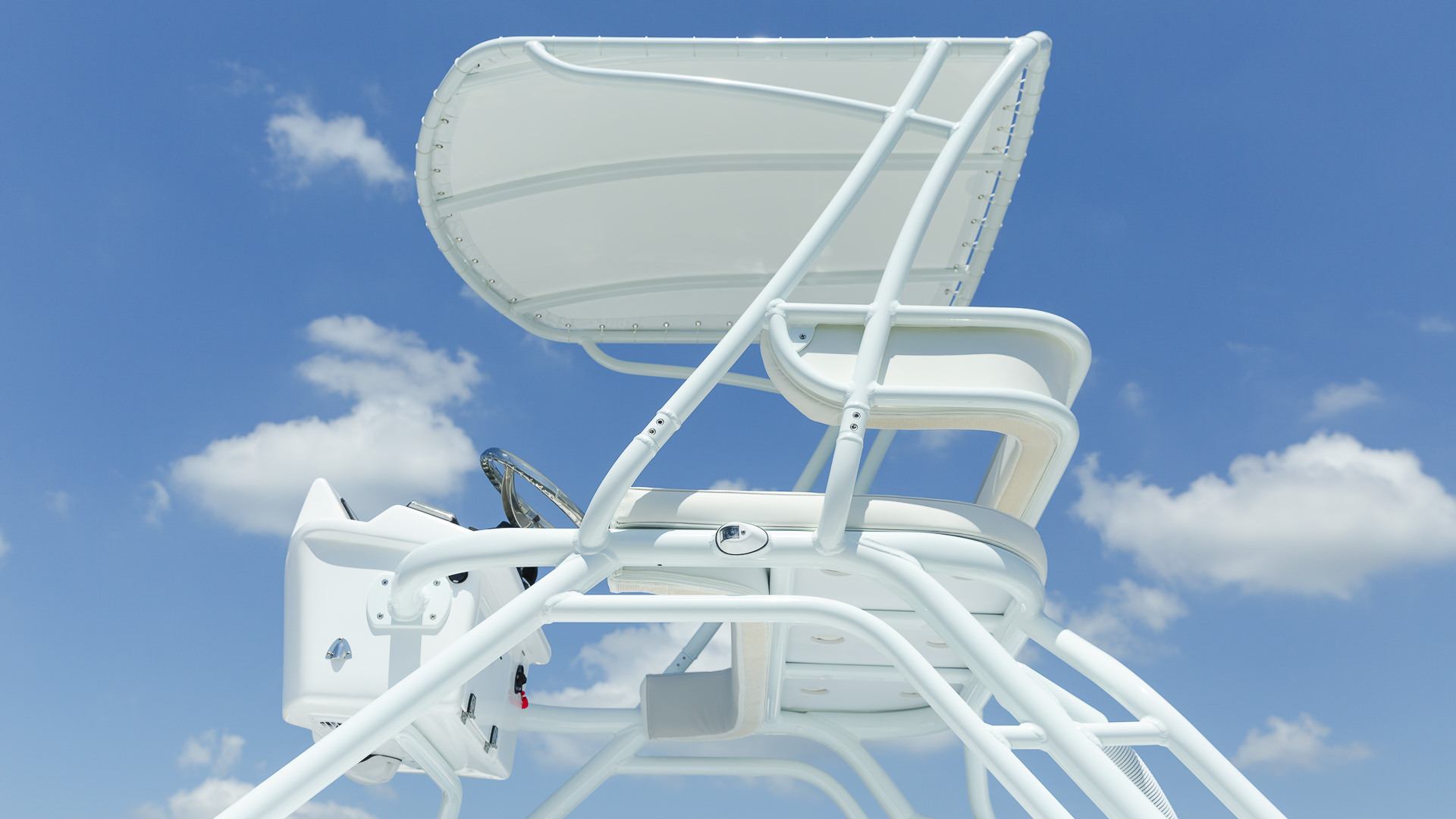

Tuna tower w/ second stations controls
Hardtop rocket launcher rack- 6 rod holders
Insulated fish box
Offshore 30 gal bail tank & high volume pump mat transom
Power socket for 12 V electric fishing reel
MOORING, ANCHORING & SAFETY
USCG Safety package; 4x life jackets, first aid kit, 2 x 10bc fire extinguisher, day/night signal kit
Docking kit: mooring lines; 4×5/8″ x 35′ w/splice eye, 4×8″ x 20′ polyfoam HTM fenders, 4-8′ x 3/8″ fender whips w/spliced eye
Anchoring kit: Lewmar self deploying anchor, 20′ 1/4″ HT Chain, 150′ 1/2″ Nylon Rode
